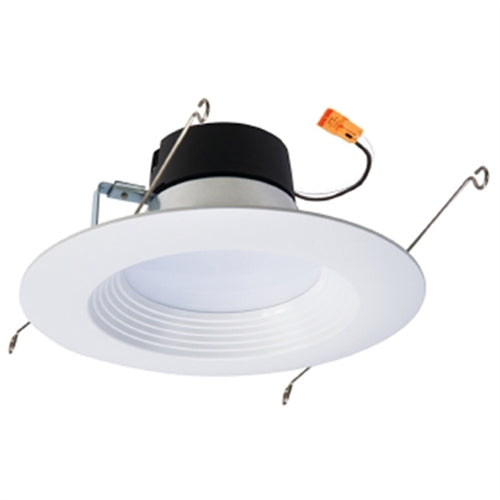

Halo Recessed LT560WH6927R 5" and 6" All-Purpose LED Integrated Retrofit Trim, 90 CRI, 2700K, 731 Lumens, White Finish
Halo Recessed LT560WH6927R 5" and 6" All-Purpose LED Integrated Retrofit Trim, 90 CRI, 2700K, 731 Lumens, White Finish
Regular price
Price:
$11.80
Regular price
Price:
Sale price
$11.80
Unit price
per
MODEL: Halo-LT560WH6927R
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Module
Module
- Field interchangeable and upgradable LED module consists of LED array, optical assembly, driver and baffle style self-flanged trim
- Integral aluminum heat sink provides passive thermal cooling achieving L70 at 35,000 hours in IC and non-IC applications
- Closed cell gasket achieves restrictive airflow requirements without additional caulking
- A plurality of low power LEDs provide a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 4 SDCM provide color accuracy and uniformity
- Available in 2700, 3000, 3500, 4000 and 5000K CCT color temperatures
- Optical assembly provides wide distribution useful for general and task lighting
- Diffuse injection molded lens with contoured profile provides uniformity and a familiar lamp like appearance
- Meets ENERGY STAR color angular uniformity requirements
- Integral 120V 60 Hz constant current driver provides high efficiency operation
- Continuous, flicker-free dimming from 100% to 10% with select leading or trailing edge 120V phase cut dimmers -- consult dimming guide for more information
- Consult dimmer manufacturer for compatibility and conditions of use
- Preinstalled torsion springs hold module securely to the housing
- Ships with torsion springs set in the 6" position, adjusts to 5" position with Philips drive locking screws
- One-piece step baffle and self-flanged trim ring provides lens regression and reduces light leaks
- Injection molded plastic construction is impact resistant and non-corrosive
- Non-conductive construction meets most local code ‘dead front’ requirements
- cULus listed for use with Halo housings, classified for use with other’s housings, see instruction sheet for conditions of acceptability
- Wet location listed and IP66 ingress protection rated
- Airtight per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings
- ENERGY STAR listed, reference database for current listings
- Meets State of California voluntary lamp standards
- Lighting Facts labeled
- Five year limited warranty
