Home > Halo Lighting > Halo Recessed LTC406FS5B 4" Recessed Canless LED Downlights, 650 Lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K CCT Selectable, 120V 60Hz, LE & TE Phase Cut 10% Dimming, Matte White

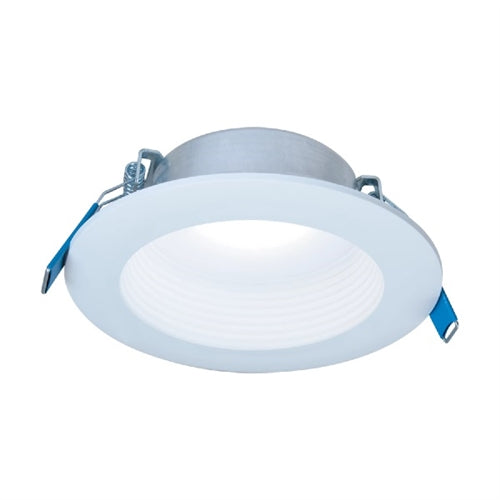

Halo Recessed LTC406FS5B 4" Recessed Canless LED Downlights, 650 Lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K CCT Selectable, 120V 60Hz, LE & TE Phase Cut 10% Dimming, Matte White
Halo Recessed LTC406FS5B 4" Recessed Canless LED Downlights, 650 Lumens, 90 CRI, 2700K/3000K/3500K/4000K/5000K CCT Selectable, 120V 60Hz, LE & TE Phase Cut 10% Dimming, Matte White
Regular price
Price:
$25.80
Regular price
Price:
Sale price
$25.80
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Selectable System
Selectable System
- Use the 5-position color selector switch to choose between: 2700K, 3000K, 3500K, 4000K, and 5000K
- LED module consists of LED array, optical assembly, driver and self-flanged trim
- Baffle trim (Use a decorative overlay to convert from baffle to smooth splay - order separately)
- Injection molded plastic construction is impact resistant and non-corrosive
- Non-conductive construction meets most local code 'dead front' requirements
- A plurality of low power LEDs provide a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 4 SDCM provide color accuracy and uniformity
- Factory default color temperature (CCT) is set to bright white (3000K)
- 5-color selectable CCT: 2700K, 3000K, 3500K, 4000K and 5000K
- Optical assembly provides wide distribution useful for general and task lighting
- Diffuse injection molded lens with contoured profile provides uniformity and a familiar lamp like appearance
- Integral 120V 60 Hz constant current driver provides noise free operation
- Dimmable: Continuous, flicker-free phase cut (leading-edge/trailing-edge - LE/TE) dimming from 100% to 10% output with compatible dimmers
- See this fixture’s Dimming Guide for compatible dimmers
- No additional housing or junction box required (Not for installation in recessed cans)
- The included remote driver / junction box may be used in direct contact with insulation
- Installer must cut hole and install fixture into aperture with the clips compressed
- When released, the spring clips will rest on the back side of the ceiling material holding the fixture in place
- For new construction applications, use HALO Canless Mounting Frames or Smash Plates prior to drywall installation
- Closed cell gaskets achieve restrictive airflow requirements without additional caulking
- UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
- Damp location listed. Not recommended for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Airtight certified per ASTM-E283
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2022-E.
- Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
- ENERGY STAR listed, reference database for current listings
- Five year limited warranty
