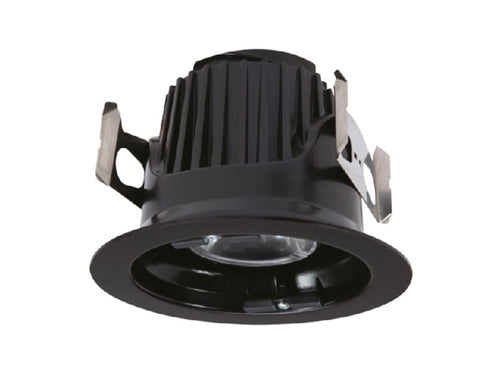

Halo Recessed ML4D10FL9FS1E 4" Retrofit LED Module, 1000 Lumens, 5CCT Selectable, 90 CRI, 40 Degree Optic, 120V, LE/TE 5% Dim
Halo Recessed ML4D10FL9FS1E 4" Retrofit LED Module, 1000 Lumens, 5CCT Selectable, 90 CRI, 40 Degree Optic, 120V, LE/TE 5% Dim
Regular price
Price:
$51.13
Regular price
Price:
Sale price
$51.13
Unit price
per
MODEL: Halo-ML4D10FL9FS1E
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Die cast aluminum housing provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
- Stainless steel springs hold module securely in the housing, can be removed thru the aperture for service or replacement
- Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM at end points and 4 SDCM in the middle providing color accuracy and uniformity
- Field selectable 2700, 3000, 3500, 4000 or 5000K CCT, factory set at 3000K CCT
- Optional full spectrum color, 95 CRI minimum with R1-R15 values ranging from 92 to 100, excellent TM-30 metrics; Rf ranging from 96-98 and Rg >98
- D2W dim-to-warm option shifts color temperature from 3000 to 1800K CCT or 2700 to 1800K CCT as fixture dims mimicking the black body dimming response of halogen or incandescent lamps
- Field interchangeable trims are available in 3-1/2" aperture conical and 2-inch round or square pinhole apertures
- Available in a broad range of painted or plated finishes, can be painted in the field to match any décor
- Magnetic attachment holds trim tightly to ceiling and minimizes light leaks
- Precision molded TIR optic organizes source flux into useful beams without stray lumens in the field
- Low glare, UGR < 17
- Two-piece construction with matte black mounting ring and polarized turn and lock mounting aligns optic to source and minimizes backlight in the housing
- Meets ENERGY STAR color angular uniformity requirements, color deviation is typically less than 0.004 u' v'
- Available in narrow flood, flood, wide flood and asymmetric wall wash distributions, ships with flood optic factory installed, order alternate distributions or replacements separately
- Integral media holder accepts (2) lens or louver 2" diameter 3.0mm thick color filters, lens or louvers
- Order media separately
- Integral UNV 120-277V 50/60 Hz constant current driver provides noise free operation and can be replaced in the field
- Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut control
- Optional UNV 120-277V 50/60 Hz driver with 0-10V analog dimming from 100% to 5%
- Medium base (E26) to CJT adapter (provided) provides mains connection.
- UL Certified US and Canada
- Damp and wet location listed, covered ceilings only and IP65, below the ceiling only with lens trims
- Airtight per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- ENERGY STAR certified, reference Certified Light Fixtures database
- Can be used for State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
- T20 for Std 120V and 120-277V 0-10V modules
- Five-year limited warranty,
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
