Halo Recessed ML5615LSVWFL9FS1E 5" and 6" LED Light Module, 650/900/1100 Lumens, 2700-5000K CCT selectable, 90 CRI, Soft focus lens, 120V 5% Dim

Halo Recessed ML5615LSVWFL9FS1E 5" and 6" LED Light Module, 650/900/1100 Lumens, 2700-5000K CCT selectable, 90 CRI, Soft focus lens, 120V 5% Dim

Price: $104.04
Price: $104.04

MODEL: Halo-ML5615LSVWFL9FS1E

Usually Ships in 4-6 business days. Urgent Project? Contact Us Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
Free shipping for order over $98
Free shipping for order over $98
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Module

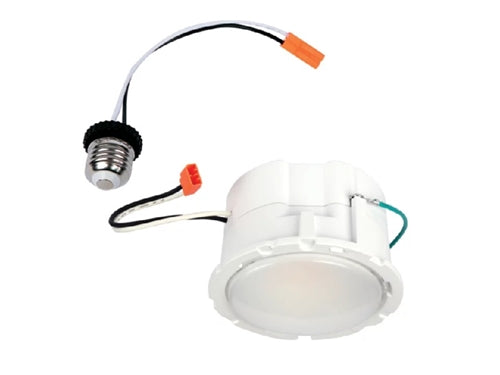

  • Field interchangeable and upgradable LED module consists of LED array, primary optic and driver
  • Ships with very wide flood soft diffused optic factory installed order alternate distributions or replacements separately
  • Optional TIR optics provide higher lumen select values than default soft diffused optic
  • Integral die cast aluminum heat sink provides passive thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
LED Array
  • Proximity phosphors over chip on board LEDs provide a uniform source with high efficiency and no pixilation
  • Available in 90 CRI minimum, 97CRI option, R9 greater than 50 and color accuracy within 3 SDCM at end points and 4 SDCM in the middle providing color accuracy and uniformity
Electrical Power Connections
  • LED connector is a non-screw base luminaire disconnect offering easy installation in Halo 5” H550 series and 6" H750 and 2750 series housings (per LED trim 5” or 6”).
  • LED Connector meets high-efficacy luminaire requirements for a non-screw base, and where required.
  • The included E26 medium screw-base Edison adapter* provides easy retrofit of incandescent housings (non-California product only) (see Housing Section).
Ground Connection
  • Separate grounding cable included on the module for attachment to the housing during installation.
Driver
  • Integral 120V 60 Hz constant current driver provides noise free operation
  • Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut control
  • Optional UNV 120-277V 50/60 Hz driver with 0-10V analog dimming from 100% to 5%, provided with inline electrical quick connect for low voltage connections
  • Medium base (E26) to CJT adapter (provided) support use of incandescent housings and field retrofits
Dimming
  • Designed for dimming capability to nominal 5% in normal operation with standard 120V Leading Edge (LE) and Trailing Edge (TE) phase control dimmers or 120-277V 0-10V dimmers (Consult dimmer manufacturer for dimmer compatibility and details.
  • Note, some dimmers require a neutral in the wall box).
Primary Optic
  • Soft Focus lens is standard on all ML56 LED light modules
  • Impact-resistant polycarbonate
  • Convex form for lamp-like appearance
  • High lumen transmission
  • Optional beam forming optic is field installed.
  • Order separately (accessories).
