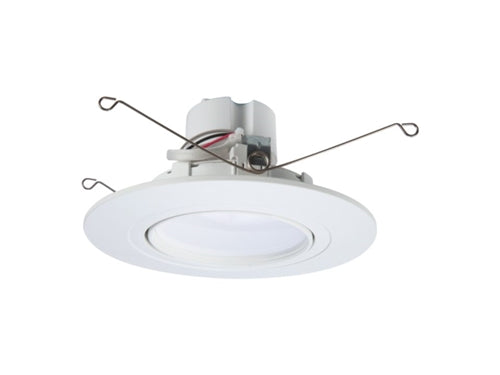

Halo Recessed RA56109S1EWHR 5" or 6" All-Purpose LED Retrofit Module, 1000 Lumens, 90 CRI, White Tuning, Field Selectable 2700-5000K, White Finish

Halo Recessed RA56109S1EWHR 5" or 6" All-Purpose LED Retrofit Module, 1000 Lumens, 90 CRI, White Tuning, Field Selectable 2700-5000K, White Finish

Price: $44.13
Price: $44.13

MODEL: Halo-RA56109S1EWHR

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT SPECIFICATIONS
CCT Select System
  • Use the switch to choose between 2700K, 3000K, 3500K, 4000K, and 5000K CCT.
Module - Trim
  • Module construction includes LED array, heat sink, reflector, lens, baffle and trim ring.
  • Regressed baffle
  • Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments.
LED Array
  • Mid power LED array provides a uniform source with high efficiency and no pixilation.
  • 90 CRI minimum, R9 greater than 50
  • Color accuracy at 4 SDCM in between endpoints, provide color accuracy and uniformity.
  • Color Temperature (CCT) has a selectable range from 2700K to 5000K (factory default 3000K)
Optical Assembly
  • Regressed lens
  • Impact-resistant polycarbonate
  • Convex form and lamp-like appearance
  • Diffuse for even illumination
Driver
  • Integral 120V 60 Hz constant current driver provides noise free operation.
  • Continuous, flicker-free dimming from 100% to 5%.
  • Inline electrical quick connect and E26 adapter (provided) provides mains connections.
  • See Dimming Guide for compatible dimmers.
Retention
  • Integral torsion springs and Push-N-Twist clips offer two mounting options.
  • Torsion springs are pre-installed. Friction Clips are optional and included but not pre-installed. Adjust to fit 5" or 6" compatible housings
  • Push-N-Twist universal installation clips are preinstalled and designed to fit 5" or 6" compatible housings.
Compliance
  • UL Certified US and Canada
  • Damp location listed.
  • EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
  • Contains no mercury or lead and RoHS compliant
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
  • Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2019-E.
  • Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
  • ENERGY STAR listed, reference database for current listings
Warranty
  • Five year limited warranty
