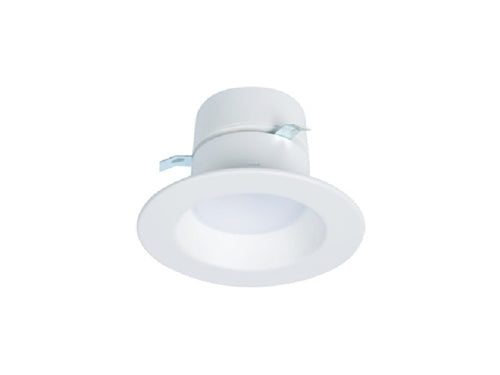

Halo Recessed RL3059FSD2W1EWH 3" LED Retrofit Module, 500 Lumens, 90 CRI, Selectable CCT with D2W Option, 120V 60Hz, LE & TE Phase Cut 5% Dimming, Matte White Flange
Halo Recessed RL3059FSD2W1EWH 3" LED Retrofit Module, 500 Lumens, 90 CRI, Selectable CCT with D2W Option, 120V 60Hz, LE & TE Phase Cut 5% Dimming, Matte White Flange
Regular price
Price:
$26.61
Regular price
Price:
Sale price
$26.61
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Selectable System
Selectable System
- Use the CCT select switch to choose between D2W, 2700K, 3000K, 3500K, 4000K, and 5000K CCT
- D2W option starts at 3000K and warms to 1800K as fixture dims
- Use the lumen select switch on lumen selectable fixtures to choose brightness level
- Module construction includes LED array, heat sink, reflector, lens, baffle and trim ring
- Regressed baffle
- Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments
- Mid power LED array provides a uniform source with high efficiency and no pixilation
- 90 CRI minimum, R9 greater than 50
- Color accuracy at 4 SDCM in between endpoints, provide color accuracy and uniformity.
- Color Temperature (CCT) is set to a factory default of 3000K
- Regressed lens
- Impact-resistant polycarbonate
- Convex form and lamp-like appearance
- Diffuse for even illumination
Driver
- Integral 120V 60 Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5%
- Inline electrical quick connect and E26 adapter (provided) provides mains connections
- See Dimming Guide for compatible dimmers
- For 3-inch and 4-inch: Push-N-Twist universal installation clips are pre-installed and designed to fit compatible recessed housings.
- For 5/6-inch: Torsion springs are pre-installed and adjust to fit 5-inch or 6-inch housings. Push-N-Twist universal installation clips are also included
- Overlays are accessory rings that attach to the fixture for a decorative finish. Refer to the accessories table in the ordering information section for details
- Closed cell gaskets achieve restrictive airflow requirements without additional caulking
Compliance
- UL Certified for US and Canada for use with Halo housings, classified for use with other’s housings, see instruction sheet for conditions of acceptability
- UL Certified for US and Canada, type IC suitable for direct contact with air permeable insulation
- Not for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Wet and Damp location listed
- Airtight certified per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2022-E.
- Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
- ENERGY STAR listed, reference database for current listings
- IP44 Ingress Protection rated
- Five year limited warranty
