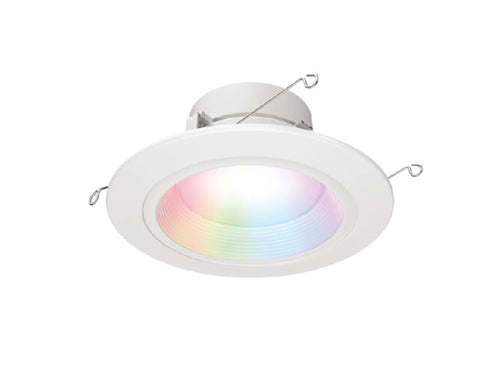

Halo Recessed RL56069WZRGBWWHR 5" and 6" Smart WiFi LED Retrofit Downlight Module, 600 Lumens, Full Color + Tuneable White 2200K-6500K, Matte White

Price: $31.12

MODEL: Halo-RL56069WZRGBWWHR

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
Wireless System

HALO with WiZ PRO products can be claimed using either the WiZ App or WiZ PRO Setup App.
Compatible with all WiZ-enabled products.
Max Devices/Account: 200 WiZ App Setup & Control
HALO with WiZ PRO products can be claimed and controlled directly within the WiZ App.
The WiZ App allows for control of lighting from home or away via Wi-Fi.
Wirelessly control on/off, white tuning (2200K to 6500K), full color, and dimming (100% to 5%) using the WiZ App
Android or Apple iOS compatible with most smartphones and tablets
Setup Groups, Scenes, Schedules, and Rhythms to automate lighting.
Integrates with Amazon Alexa, Hey Google, Siri Shortcuts, IFTTT, and SmartThings WiZ PRO Control
HALO with WiZ PRO also has claiming and account management features designed for the pro installer.
Pros can use the WiZ Pro Setup App to claim products quickly using pre-Wi-Fi commissioning and manage multiple jobsites including transferring account ownership.
The WiZ Pro Dashboard gives professional installers:
A clear overview to monitor lighting over a mapped location
Full range of configurations and remote control
Comprehensive reporting on device status & energy usage
Learn more about WiZ PRO features and functionality at pro.wizconnected.com

WiZ Support

HALO has partnered with WiZ as a third-party smart home system. All associated information and support for WiZ can be accessed via the WiZ App, WiZ PRO Setup App, WiZ PRO Dashboard or at wizconnected.com.

Control & Dimming

These fixtures can be used with standard ON/ OFF switches. (Do not use with any dimmers.)
The WiZ Click Feature is a secondary control option, which uses your main light switch: toggle the switch on once to activate Favorite Mode 1, toggle twice for Favorite Mode 2.
Wireless flicker-free dimming from 100%-5% via the WiZ App
nly compatible with other WiZ-enabled products (Not compatible with HALO Home or any other controls.)

Power Cycle Behavior

Unpaired WiZ fixtures will operate like a standard fixture until claimed into an account (2700K)
IMPORTANT: If fixtures are hardwired with constant power or a user plans to always control them wirelessly instead of with a standard ON/OFF switch, use the Power Outage Recovery setting to prevent devices from turning back ON after a power outage. If fixtures are hardwired with constant power, use the Power Outage Recovery setting to prevent devices from turning back on after a power outage

Module - Trim

Module construction includes LED Array, heat sink, reflector, lens, aluminum baffle and trim ring.
Regressed baffle
Heat sink designed to conduct heat away from the LED Array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments.

LED Array

Delivers 600 lumens
Mid power LED array provides a uniform source with high efficiency and no pixilation.
90 CRI minimum, R9 greater than 50
4 SDCM at 2700K and 7 SDCM up to 6500K
Full color RGB LEDS also included to delivery 16 million color options
50K hour life: achieves L70 at 50,000 hours in IC and non-IC applications

Optical Assembly

Driver

Integral 120V 60 Hz constant current driver provides noise free operation
Inline orange electrical LED quick connect and E26 adapter (included) provides mains connections
Refer to installation instructions for more information

Retention

2 Mounting Options: Torsion springs are preinstalled with optional Push-N-Twist universal installation clips included to fit compatible 5" or 6" housings
Refer to installation instructions for more information on installing

Decorative Overlays (sold separately)

Gaskets

Closed cell gaskets achieve restrictive airflow requirements without additional caulking

Compliance

UL certified in US and Canada for use with HALO housings and other manufacturer’s housings
Wet location listed
Airtight certified per ASTM-E283
Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
Contains no mercury or lead and RoHS compliant
Photometric testing in accordance with IES LM-79-08
Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2019-E.
Title 20 Certified
Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
ENERGY STAR Certified, reference database for current certifications
FCC ID - 2AC7Z-ESP32SOLO1
IC CODE - 21098-ESP32SOLO1

Warranty

Five year limited warranty, consult website for details. cooperighting.com/legal
