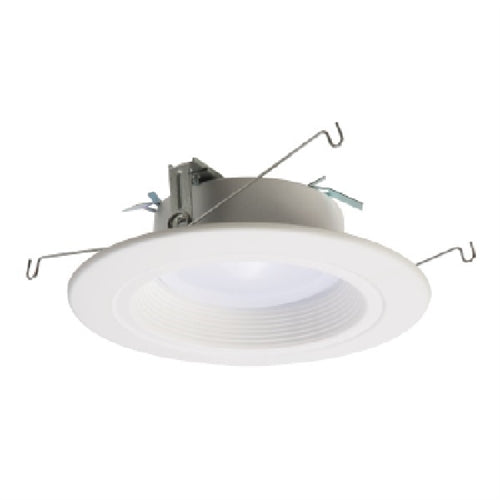

Halo Recessed RL56099S1EWHR 5" or 6" Dimmable All-Purpose LED Retrofit Module with SeleCCTable Switch, 900 Lumens, 90 CRI, 120V, Matte White Baffle, Recyclable Packaging

Halo Recessed RL56099S1EWHR 5" or 6" Dimmable All-Purpose LED Retrofit Module with SeleCCTable Switch, 900 Lumens, 90 CRI, 120V, Matte White Baffle, Recyclable Packaging

Price: $26.80
Price: $26.80

MODEL: Halo-RL56099S1EWHR

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT SPECIFICATIONS
CCT Select System
  • Use the switch to choose between 2700K, 3000K, 3500K, 4000K, and 5000K CCT.
Module - Trim
  • Module construction includes LED array, heat sink, reflector, lens, baffle and trim ring.
  • Regressed baffle
  • Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments.
LED Array
  • Mid power LED array provides a uniform source with high efficiency and no pixilation.
  • 90 CRI minimum, R9 greater than 50
  • Color accuracy at 4 SDCM in between endpoints, provide color accuracy and uniformity.
  • Color Temperature (CCT) has a selectable range from 2700K to 5000K (factory default 3000K)
Optical Assembly
  • Regressed lens
  • Impact-resistant polycarbonate
  • Convex form and lamp-like appearance
  • Diffuse for even illumination
Driver
  • Integral 120V 60 Hz constant current driver provides noise free operation
  • Continuous, flicker-free dimming from 100% to 5%.
  • Inline electrical quick connect and E26 adapter (provided) provides mains connections
  • See Dimming Guide for compatible dimmers
Retention
  • Integral torsion springs and Push-N-Twist clips offer two mounting options
  • Torsion springs are pre-installed and adjust to fit 5" or 6" compatible housings
  • Push-N-Twist universal installation clips are pre-installed and designed to fit 5" or 6" compatible housings
Designer Skins (sold separately)
  • RL56 skins are accessory rings that attach to the RL56 for a permanent finish. Refer to the RL56 accessories specification sheet for details.
    • White (Paintable)
    • Satin Nickel
    • Tuscan Bronze
Gaskets
  • Closed cell gaskets achieve restrictive airflow requirements without additional caulking
Compliance
  • UL Certified
  • Wet and Damp location listed.
  • Airtight certified per ASTM-E283
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
  • EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
  • Contains no mercury or lead and RoHS compliant
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
  • Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2016-E.
  • Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
  • ENERGY STAR listed, reference database for current listings
Warranty
  • Five year limited warranty
