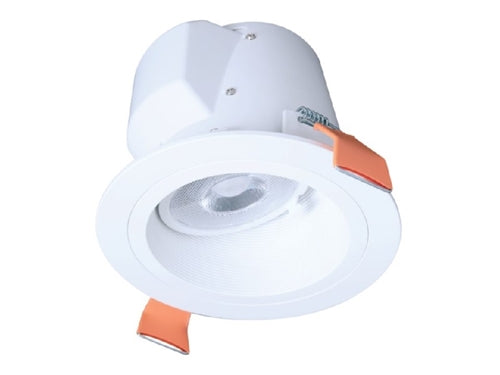

Halo Recessed RLS6159FS1EWHDMR 6" Slope Ceiling LED Direct Mount Module, 2700-5000K, 1500 Lumens, White Finish
Halo Recessed RLS6159FS1EWHDMR 6" Slope Ceiling LED Direct Mount Module, 2700-5000K, 1500 Lumens, White Finish
Regular price
Price:
$77.72
Regular price
Price:
Sale price
$77.72
Unit price
per
MODEL: Halo-RLS6159FS1EWHDMR
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Module
Module
- LED module consists of LED (chip on board), optical assembly, driver and self-flanged trim
- Regressed baffle style trim
- Achieving L70 at 50,000 hours in IC and non-IC applications
- Adjustment mechanism tilts the light engine from 9 degrees up to 45 degrees to match 2/12 to 12/12 ceiling pitches
- Closed cell gasket achieves restrictive airflow requirements without additional caulking
- Chip on board LEDs provide a uniform source with high efficiency and no pixilation
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 4 SDCM provide color accuracy and uniformity
- Available in 5-color field selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Optical assembly provides flood distribution useful for general and task lighting in sloped ceiling applications
- Diffuse injection molded lens with contoured profile provides uniformity and a familiar lamp like appearance
- Meets ENERGY STAR color angular uniformity requirements
- Die formed metal driver / junction box with captive hinged junction box cover
- Listed for (6) #12 AWG 90˚ C splice conductors, 2-in, 2-out plus (2) ground
- (3) 1/2" conduit pry-outs
- (2) Slide-N-Side non-metallic (NM) wire traps accept 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable
- (3) 4-port push wire nuts for quick and reliable mains voltage connections
- Integral mounting facilitates direct mounting to building structure or mounting frame
- Remote 120V 60 Hz constant current driver provides high efficiency operation
- Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers
- Can be installed in 1/2" to 1-1/4" thick ceilings
- Round ceiling cutout
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leaks
- Can be removed from below the ceiling for service or replacement
Compliance
Warranty- UL Certified for US and Canada, type IC suitable for direct contact with air permeable insulation
- Not for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Damp location listed
- Air-tite per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and is RoHS compliant
- Photometric testing in accordance with IES LM79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Compliant with California Title 24 High Efficiency LED under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2019 JA8 High Efficacy Lighting
- ENERGY STAR certified, reference "Certified Light Fixtures" database
- Five year limited warranty
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
