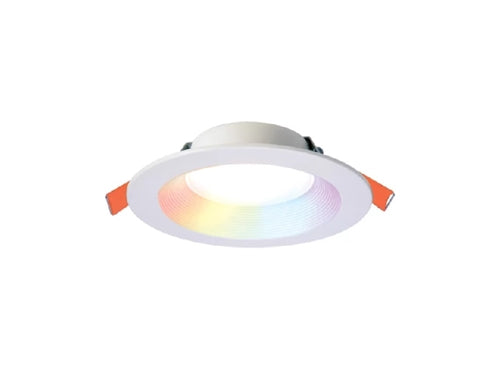

Halo Recessed RLWZC409 4" Smart Wi-Fi Recessed Canless LED Downlight Connected by WiZ Pro, 900 Lumens, 90 CRI, Wireless Dimming to 5%, Matte White
Halo Recessed RLWZC409 4" Smart Wi-Fi Recessed Canless LED Downlight Connected by WiZ Pro, 900 Lumens, 90 CRI, Wireless Dimming to 5%, Matte White
Regular price
Price:
$45.82
Regular price
Price:
Sale price
$45.82
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Wireless System
Wireless System
-
HALO products that are Connected by WiZ Pro can be claimed 2 ways:
- For standard applications, use the WiZ app and claim over Bluetooth/Wi-Fi. Learn more at wizconnected.com
- Professional installers can claim via the WiZ app or the WiZ Pro Setup app. Use the Pro Setup app if no Wi-Fi has been setup yet, or if the installation is a large-scale project that requires additional features like the WiZ Pro Dashboard. Learn more at pro.wizconnected.com
- The fixtures are compatible with any Connected by WiZ or Connected by WiZ Pro products made by HALO, WiZ or other manufacturers.
- Maximum number of devices per account: 200
- For standard applications, use the WiZ app and claim over Bluetooth/Wi-Fi
- These products can be claimed and controlled directly within the WiZ app.
- The WiZ app allows for wireless control of lighting from home or away via Wi-Fi.
- Wirelessly control on/off, white tuning (candlelight 2200K to true daylight 6500K), full color (16-million options), and dimming (100% to 5%) via the WiZ app.
- The WiZ app and WiZ Pro Setup app are Android or Apple iOS compatible with most smartphones and tablets
- Setup homes, rooms, groups, scenes, schedules, rhtyhms, music sync, and SpaceSense motion detection to automate your smart home lighting.
- Integrates with Matter, Amazon Alexa, Hey Google, Apple HomeKit, Siri Shortcuts, IFTTT, and SmartThings
- Learn more at wizconnected.com
- HALO with WiZ PRO also has claiming and account management features designed for the pro installer.
- Pros can use the WiZ Pro Setup App to claim products quickly using pre-Wi-Fi commissioning and manage multiple jobsites including transferring account ownership.
- The WiZ Pro Dashboard gives professional installers:
- A clear overview to monitor lighting over a mapped location
- Full range of configurations and remote control
- Comprehensive reporting on device status & energy usage
- Learn more about WiZ Pro features and functionality at pro.wizconnected.com
- Wireless flicker-free dimming from 100%-5% via the WiZ App
- Fixtures can be controlled via several options:
- Standard ON/OFF Switches: The WiZclick feature is a secondary control option, which uses your main light switch:
- Toggle the switch on once to activate Favorite Mode 1
- Toggle twice for Favorite Mode 2 (Favorite Mode 1 and 2 are editable within the WiZ app)
- Wired hot with constant power and controlled via the WiZ app or other Connected by WiZ remote controls (sold by others)
- Wired with other Connected by WiZ in-wall switches/dimmers (sold by others)
- Smart lighting requires full power to receive wireless messages -- do not use with standard phase-cut/triac dimmers
- Only compatible with other Connected by WiZ/ WiZ Pro products (not directly compatible with HALO Home, Philips Hue, or any other wireless smart home system)
- Module construction includes LED array, heat sink, reflector, lens, baffle and trim ring
- Die-cast aluminum regressed baffle trim
- Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments
- Mid power LED array provides a uniform source with high efficiency and no pixilation
- 90 CRI minimum, R9 greater than 50
- Color accuracy at 4 SDCM at 2700K and 7SDCM up to 6500K, provide excellent color quality and uniformity
- Full Color RGB LEDs Deliver 16 million color options along with white tuning from 2200K to 6500K color temperature (CCT).
- Factory default color temperature (CCT) is set to soft white (2700K) via the WiZ software
- Regressed lens
- Impact-resistant polycarbonate
- Convex form and lamp-like appearance
- Pre-galvanized steel driver/junction box with captive hinged cover
- Listed for six #12 AWG 90 degrees C splice conductors: two in, two out plus two grounds
- Two 1/2" conduit pry-outs
- Two Slide-N-Side non-metallic (NM) wire traps allows wiring outside the box
- Accepts NM cable types: 14-2, 14-3, 12-2, 12-3 (U.S.) and 14-2, 14-3, 12-2 (Canadian)
- Three 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
- Integral mounting holes facilitate direct mounting to building structure or mounting frame
- Plenum rated inline electrical barrel connector provides low voltage connection between remote driver / junction box and fixture (light engine) (CMP/FT6 rated)
- 6-, 12-, and 20-ft extension cables available for centralized junction box installation + additional convenience and savings on line-voltage wire
- Integral 120V 60 Hz constant current driver provides noise free operation
- Wirelessly Dimmable: Continuous, flicker-free dimming from 100% to 5% output via the WiZ app, voice control, and other Connected by WiZ controls (sold by others)
- Closed cell gaskets achieve restrictive airflow requirements without additional caulking
- No additional housing or junction box required (not for installation in recessed cans)
- The included fixture (light engine) and remote driver / junction box may be used in direct contact with insulation
- Can be installed in 1/2” to 1-1/4” thick ceilings
- Cutout utilizes standard round hole saw sizes; cutout template provided
- Heat treated springs hold fixture fitting securely in the ceiling eliminating light leak
- Installer must cut hole and install fixture into aperture with the clips compressed
- When released, the spring clips will rest on the back side of the ceiling material holding the fixture in place
- Can be removed from below the ceiling for service or replacement
- For new construction applications, use HALO Canless Mounting Frames or Smash Plates prior to drywall installation
- Pre-galvanized steel mounting frame locates fixture fittings during electrical rough-in and provides cutout guidance for drywall contractor
- Provides attachment of remote driver/junction box
- UL Certified US and Canada Type IC suitable for direct contact with air permeable insulation
- Wet and Damp location listed. Not for use in direct contact with spray foam insulation, reference NEMA LSD57-2013
- Airtight certified per ASTM-E283
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2022-E.
- Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
- ENERGY STAR listed, reference database for current listings
- Five-year limited warranty
