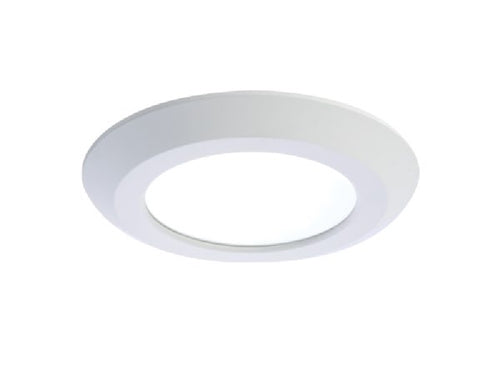

Halo Recessed SLD6129S1EMWR 6" Surface LED Downlight, Selectable CCT 2700K-5000K, 120V, 1200 Lumens, 15W
Halo Recessed SLD6129S1EMWR 6" Surface LED Downlight, Selectable CCT 2700K-5000K, 120V, 1200 Lumens, 15W
Regular price
Price:
$36.99
Regular price
Price:
Sale price
$36.99
Unit price
per
MODEL: Halo-SLD6129S1EMWR
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Die cast aluminum trim ring and die formed aluminum frame
- Light guide provides uniform luminance from a low profile flat lens
- AccuAim optics provide directional control for the "cone-of-light" beam distribution of a traditional downlight
- Precision molded lens features high transmission polymer with UV stabilized protecting film
Designer Trims
Accessories (sold separately)
Electrical Junction Box MountingAccessories (sold separately)
-
SLD designer trims are accessory rings that attach to the SLD for a permanent finish. Refer to SLD accessories specification sheet for details.
- White (Paintable)
- Satin Nickel
- Tuscan Bronze
- SLD may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
- Suitable for installation in 3-1/2" and 4" square, octagon, and round electrical junction boxes (some require SLD6EXT)
- Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building codes
- Proprietary Slot-N-Lock quick installation system for junction box installation
- T-bracket with Slot-N-Lock mounting tabs included.
- Trilateral linear LED assembly is integrated in trim perimeter.
- Field selectable color temperature; select 2700K, 3000K, 3500K, 4000K or 5000K CCT
- 90 CRI can be used for California Title 24 compliance/certified
- L70 at 50,000 hours projected in accordance with TM-21
- A tight chromaticity specification ensures LED color uniformity, sustainable Color Rendering Index (CRI) and Correlated Color Temperature (CCT) over the useful life of the LED
- LED chromaticity of 3 SDCM exceeds ENERGY STAR color standards per ANSI.
- 90 CRI model features high color performance with R9 greater than 50
- Every Halo LED is quality tested, measured, and serialized in a permanent record to register lumens, wattage, CRI and CCT.
- Halo LED serialized testing and measurement ensures color and lumen consistency on a per-unit basis, and validates long-term product consistency over time.
Electrical Connections
Junction Box
LED DriverJunction Box
- Compatible with many 3-1/2" x 2" and 4" x 1-1/2" round and octagon boxes (2-1/8" deep boxes recommended)
- Supply Wire Adapter with LED quick connector included
- For recessed housings use SLDACCKIT (sold separately)
- Driver is a 120V input high efficiency, dimmable electronic power supply providing DC power to the
- Driver features high power factor, low THD, and has integral thermal protection in the event of over temperature or internal failure.
- Driver is replaceable if it should be required 120V Dimming -- Phase Control
- Designed for continuous dimming capability to nominally 5% with many 120V Leading Edge (LE) and Trailing Edge (TE) phase control dimmers.
- Dimming to 5% is best assured using dimmers with low end trim adjustment.
- Consult dimmer manufacturer for compatibility and conditions of use.
- Note: Some dimmers require a neutral in the wallbox.
- 120V-277V UNV dimming capability to nominally 5% with 0-10V control dimmers only .
- 0-10V DC dimmers operate using two low voltage dimming wires (color coded violet and gray). The low voltage dimming wires are separate from the 120V AC or 277V AC power.
- Switching on/off is controlled via the line voltage (120V AC or 277V AC) power, and dimming is controlled via the 2-wire 0-10V DC low voltage wiring.
- UNV SLD does not phase dim, only 0-10V.
- UL Certified for use in US and Canada
- UL Certified Damp and Wet location listed.
- Suitable for use in closets, compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5)
- SLD may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
- May be installed in IC recessed housings in direct contact with insulation (Not for use in recessed housings in direct contact with spray foam insulation. Refer to NEMA LSD 57-2013)
- UL Classified when used in retrofit with listed housings (See Housing Compatibility)
- EMI/RFI: meets FCC 47CFR Part 15 Class B limits, and is suitable for use in residential and commercial installations
- Airtight certified per ASTM E283 (not exceeding 2.0 CFM under 57 Pascals pressure difference)
- 90 CRI: Can be used to comply with California Title 24 High Efficacy requirements. Can be used for International Energy Conservation Code (IECC) and Washington State Energy Code high efficiency luminaire compliance
- ENERGY STAR certified luminaire - consult ENERGY STAR Certified Product List
- Contains no mercury or lead and RoHS compliant.
- Photometric testing in accordance with IES LM-79
- Lumen maintenance projections in accordance with IES LM-80 and TM-21
- Five year limited warranty
