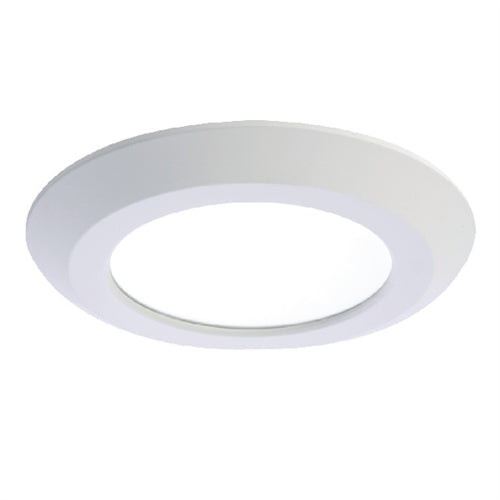

Halo Recessed SLDSL6069S1EMWR 6" Surface LED Downlight, 120V, 600 Lumens, 90 CRI, Field Selectable 2700K, 3000K, 3500K, 4000K, 5000K, Matte White
Halo Recessed SLDSL6069S1EMWR 6" Surface LED Downlight, 120V, 600 Lumens, 90 CRI, Field Selectable 2700K, 3000K, 3500K, 4000K, 5000K, Matte White
Regular price
Price:
$36.35
Regular price
Price:
Sale price
$36.35
Unit price
per
MODEL: Halo-SLDSL6069S1EMWR
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Die cast aluminum trim ring, and die formed aluminum frame
- Light guide provides uniform luminance from a low profile flat lens
- AccuAim optics provide directional control for the "cone-of-ligh" beam distribution of a traditional downlight.
- Precision molded lens features high transmission polymer with UV stabilized protecting film
-
SLD designer trims are accessory rings that attach to the SLD for a permanent finish. Refer to SLD accessories specification sheet for details.
- White (Paintable)
- Satin Nickel
- Tuscan Bronze
- SLD may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
- Suitable for installation in many 3-1/2" and 4" square, octagon, and round electrical junction boxes
- Note: Driver consumes 3 cubic inches of junction box
- Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building codes
- Proprietary Slot-N-Lock quick installation system for junction box installation
- T-bracket with Slot-N-Lock mounting tabs included
- Trilateral linear LED assembly is integrated in trim perimeter
- Field selectable color temperature; select 2700K, 3000K, 3500K, 4000K or 5000K CC
- 90 CRI can be used for California Title 24 compliance/certified to Title 2
- L70 at 50,000 hours projected in accordance with TM-21
- A tight chromaticity specification ensures LED color uniformity, sustainable Color Rendering Index (CRI) and Correlated Color Temperature (CCT) over the useful life of the LED
- LED chromaticity of 3 SDCM exceeds ENERGY STAR color standards per ANSI.
- 90 CRI model features high color performance with R9 greater than 50
- Every Halo LED is quality tested, measured, and serialized in a permanent record to register lumens, wattage, CRI and CCT.
- Halo LED serialized testing and measurement ensures color and lumen consistency on a per-unit basis, and validates long-term product consistency over time
Electrical Connections
Junction Box
Junction Box
- Compatible with 3-1/2” x 2” and 4” x 1-1/2” deep
round, square and octagon boxes (2-1/8” deep
boxes recommended)
• Supply Wire Adapter with LED quick connector
included
LED Driver
• Driver is a 120V input, high efficiency, dimmable
electronic power supply providing DC power to the
LED array
• Driver features high power factor, low THD, and
has integral thermal protection in the event of over
temperature or internal failure
• Driver is replaceable if it should be required
Dimming
• Designed for continuous dimming capability to
nominally 5% with many 120V Leading Edge (LE)
and Trailing Edge (TE) phase control dimmers.
• Dimming to 5% is best assured using dimmers with
low end trim adjustment.
• Consult dimmer manufacturer for compatibility
and conditions of use.
Note: Some dimmers require a neutral in the
wallbox.
Compliance
• UL Certified for use in US and Canada
• UL Certified Damp and Wet location listed.
• Suitable for use in closets, compliant with NFPA®
70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5)
• SLD may be used in compatible electrical junction
boxes in direct contact with insulation including
spray foam insulation
• May be installed in IC recessed housings in direct
contact with insulation (Not for use in recessed
housings in direct contact with spray foam
insulation. Refer to NEMA LSD 57-2013)
• UL Classified when used in retrofit with listed
housings (See Housing Compatibility)
• EMI/RFI: meets FCC 47CFR Part 15 Class B
limits, and is suitable for use in residential and
commercial installations
• Airtight certified per ASTM E283 (not exceeding 2.0
CFM under 57 Pascals pressure difference)
• 90 CRI: Can be used to comply with California Title
24 High Efficacy requirements.
• Can be used for International Energy Conservation
Code (IECC) and Washington State Energy Code
high efficiency luminaire compliance
• ENERGY STAR® certified luminaire - consult
ENERGY STAR® Certified Product List
• Contains no mercury or lead and RoHS compliant.
• Photometric testing in accordance with IES LM-79
• Lumen maintenance projections in accordance with
IES LM-80 and TM-21
Warranty
• Five-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
