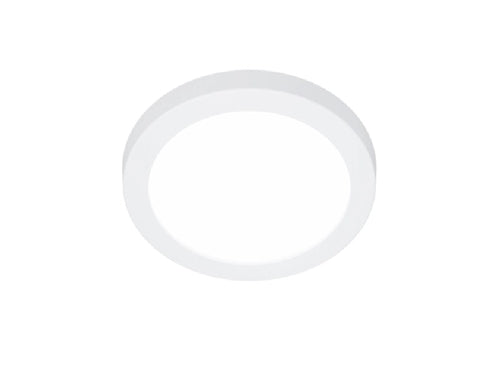

Halo Recessed SMD4R07FS5 4" Round Surface Mount LED Downlight, 780 Lumens, 90 CRI, Selectable CCT 2700/3500/4000/5000K, LE & TE Phase Cut 100-5% Dimming, Matte White
Halo Recessed SMD4R07FS5 4" Round Surface Mount LED Downlight, 780 Lumens, 90 CRI, Selectable CCT 2700/3500/4000/5000K, LE & TE Phase Cut 100-5% Dimming, Matte White
Regular price
Price:
$24.91
Regular price
Price:
Sale price
$24.91
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Module
Module
- Non-electrically conductive polycarbonate frame.
- Stamped aluminum heat sink provides passive thermal cooling achieving L70 at 50,000 hrs in IC (insulation contact) and non-IC applications
- Use the CCT select switch to choose between 5 color temperatures.
- Color Temperature: Selectable color temperature (2700K, 3000K, 3500K, 4000K, 5000K)
- Factory default is set to 3000K
- Color Quality: 90+ CRI minimum, R9 greater than 50
- Color Accuracy within 4 SDCM at the CCT endpoints provides excellent color quality and uniformity
- Factory default color temperature (CCT) is set to bright white (3000K)
- Mid power led array provide a uniform source with high efficiency and long life
- Expected Life: L70 at 50,000 hours projected in accordance with TM-21
- Precision engineered optic provides uniform luminance from a low-profile convex lens
- Integral 120V 60Hz constant current driver provides noise-free, high-efficiency operation
- Dimmable: Continuous, flicker-free phase cut (leading-edge/trailing-edge - LE/TE) dimming from 100% to 5% output with compatible dimmers
- See this fixture’s Dimming Guide for compatible dimmers
- Tip: For optimal dimming performance, consider dimmers with low-end trim adjustment; note that some dimmers require a neutral wire in the box
- Wiring: Includes electrical orange LED Quick Connect and E26 medium socket adapter provides mains connections for recessed housing installations. (Reference installation instructions for complete mounting steps.)
- Installs from below the ceiling in most 3O (3-1/2") and 4O (4") standard square/round/octagonal junction boxes
- May be used in compatible electrical junction boxes in direct contact with insulation, including spray foam insulation
- Installer must ensure compatibility of fit, wiring, and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded NEMA LSD 57-2013
- Reference installation instructions for complete mounting steps
- Installs from below the ceiling to HALO 6" recessed housings with included extension springs (non- California product only)
- Not for use in recessed housings in direct contact with spray foam insulation refer to NEMA LSD 57-2013
- The included wire nuts, LED connector, and E26 medium socket adapter provide easy mounting to recessed housings (non-California product only)
- Reference installation instructions for complete mounting steps
- cULus certified for US and Canada
- Wet location listed
- Airtight per ASTM-E283 (no gasket necessary)
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- ENERGY STAR certified, reference Certified Light
- Certified to State of California Title 20, State regulated LED Lamp; reference Modernized Appliance Efficiency Database System (MAEDBS) for State-regulate d LED Lamp
- Can be used for State of California Title 24 high efficacy LED compliance under JA8¹, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
- Five year limited warranty
