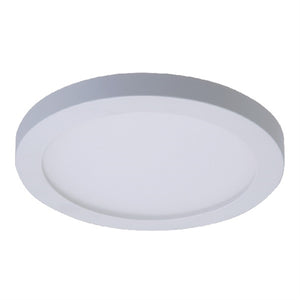

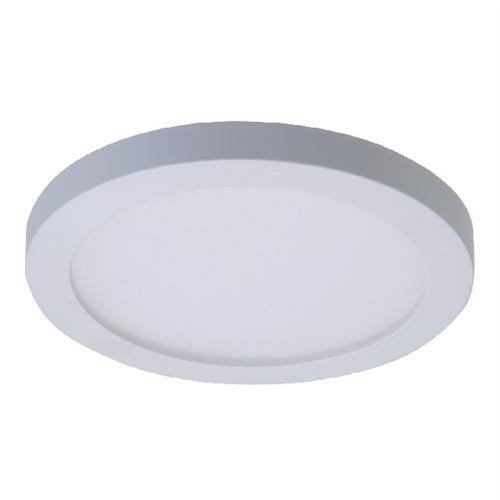

Halo Recessed SMD4R69SWH 4" Round LED Surface Mount Downlight, 600 Lumens, 90 CRI, 2700K, 3000K, 3500K, 4000K or 5000K, White Finish
Halo Recessed SMD4R69SWH 4" Round LED Surface Mount Downlight, 600 Lumens, 90 CRI, 2700K, 3000K, 3500K, 4000K or 5000K, White Finish
Regular price
Price:
$30.76
Regular price
Price:
Sale price
$30.76
Unit price
per
MODEL: Halo-SMD4R69SWH
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Note: Use the SMDACCKIT which includes friction blades and Edison base adapter. (SOLD SEPERATELY)
Housing
- Non-electrically conductive polycarbonate frame.
- High impact diffuse polystyrene lens provides shielding to the light guide with no pixilation
- Stamped aluminum housing provides thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
- Closed cell gasket achieves restrictive airflow and wet location requirements without additional caulking
- Precision acrylic light guide organizes source flux into wide distribution with 1.2 - 1.4 spacing criteria useful for general area illumination
- Mid power led array provide a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity
- Integral 120V 50/60Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers
- Dimming to 5% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox.)
- Inline electrical quick connect and E26 adapter (provided) provides mains connections.
- Adjustable spider plate allows for quick installation into both junction boxes and recessed housings
- Friction blades included
- The SMD may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
- Suitable for installation in many 3-1/2" and 4" square, octagon, and round electrical junction boxes
- Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded
Note: Use the SMDACCKIT which includes friction blades and Edison base adapter. (SOLD SEPERATELY)
- May be installed in IC recessed housings in direct contact with insulation Note: Not for use in recessed housing in direct contact with spray foam insulation. Refer to NEMA LSD 57-2013
- SMD skins are accessory rings in both round and square. These skins attach to the SMD for a permanent finish. Refer to the SMD accessories specification sheet for details.
- Matte White (Paintable)
- Satin Nickel
- Tuscan Bronze
- cULus listed / certified for use with Halo housings, classified for use with other’s housings , when used with SMDACCKIT (Sold Seperately), see instruction sheet for conditions of acceptability.
- Wet and Damp Location listed, airtight per ASTM-E283
- Suitable for use in closets, compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5)
- EMI/RFI emissions per FCC 47CFR Part 15B
- Contains no mercury or lead and RoHS compliant.
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings
- Can be used for International Energy Conservation Coe (IECC) and Washington State Energy Code high efficiency luminaire compliance
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
