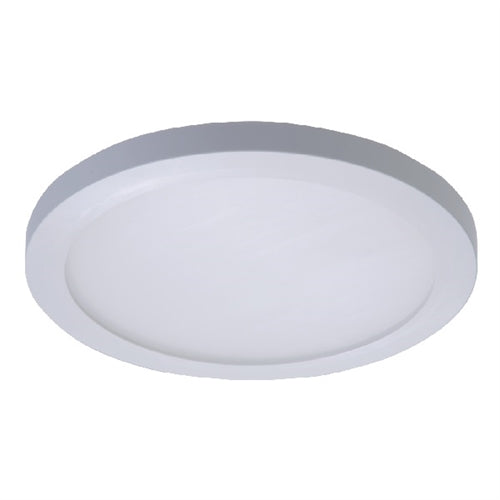

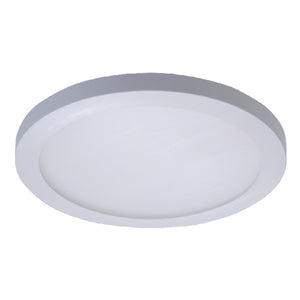

Halo Recessed SMD6R129SWHE 6" Round LED Surface Mount Downlight, 1200 Lumens, 90 CRI, 2700K-5000K Field Selectable CCT, Matte White, 120-277V
Halo Recessed SMD6R129SWHE 6" Round LED Surface Mount Downlight, 1200 Lumens, 90 CRI, 2700K-5000K Field Selectable CCT, Matte White, 120-277V
Regular price
Price:
$45.62
Regular price
Price:
Sale price
$45.62
Unit price
per
MODEL: Halo-SMD6R129SWHE
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Housing
Housing
- Non-electrically conductive polycarbonate frame.
- High impact diffuse polystyrene lens provides shielding to the light guide with no pixilation
- Stamped aluminum housing provides thermal cooling achieving L70 at 50,000 hours in IC and non-IC applications
- Closed cell gasket achieves restrictive airflow and wet location requirements without additional caulking
- Precision acrylic light guide organizes source flux into wide distribution with 1.2 – 1.4 spacing criteria useful for general area illumination
- Mid power LED array provide a uniform source with high efficiency and long life
- Available in 90 CRI minimum, R9 greater than 50 and color accuracy within 3 SDCM provide color accuracy and uniformity
Driver
SMD 120V
or SMD 120-277VSMD 120V
- Integral 120V 50/60Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5% with select leading or trailing edge 120V phase cut dimmers
- Dimming to 5% is best assured using dimmers with low end trim adjustment. Consult dimmer manufacturer for compatibility and conditions of use. (Note some dimmers require a neutral in the wallbox.)
- Inline electrical quick connect and E26 adapter (provided) provides mains connections
- Integrated 120-277V 60Hz constant current driver provides noise free operation
- SMD Universal Voltage (120-277V) configurations are recommended for use with compatible 0-10V DC
- low voltage dimmers only
- Adjustable spider plate allows for quick installation into junction boxes
- Torsion springs and friction blades are sold separately click here
- The SMD may be used in compatible electrical junction boxes in direct contact with insulation including spray foam insulation
- Suitable for installation in many 3-1/2" and 4" square, octagon, and round electrical junction boxes
- Note: SMD120-277V UNV is only compatible with junction boxes that provide minimum depth of 2-1/8"
- Installer must ensure compatibility of fit, wiring and proper mounting in the electrical junction box. This includes all applicable national and local electrical and building coded
- Note: Use the SMDACCKIT which includes torsion springs and Edison base adapter. (SOLD SEPERATELY)
- May be installed in IC recessed housings in direct contact with insulation
- Note: Not for use in recessed housing in direct contact with spray foam insulation. Refer to NEMA LSD 57-2013
Designer Skins (Sold Separately)
Compliance-
SMD skins are accessory rings in both round and square. These skins attach to the SMD for a permanent finish. Refer to the SMD accessories specification sheet for details
- Matte White (Paintable)
- Satin Nickel
- Tuscan Bronze
- cULus Certified for use with Halo housings and for use with other’s housings, , when used with SMDACCKIT (Sold Seperately) see instruction sheet for conditions of acceptability
- Wet and Damp Location listed, airtight per ASTM-E283
- Suitable for use in closets, compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5)
- EMI/RFI emissions per FCC 47CFR Part 15B
- Contains no mercury or lead and RoHS compliant.
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings
- Can be used for International Energy Conservation Code (IECC) and high efficiency luminaire compliance
- ENERGY STAR listed, reference database for current listings
- Five year limited warranty
