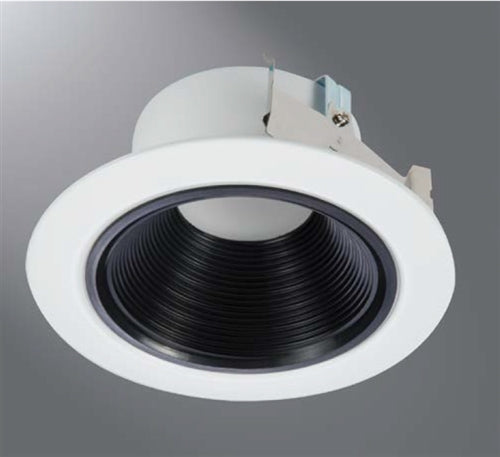

Home > Halo Lighting > Halo Recessed RLD4069301EWH 4" Deep Baffle Retrofit LED Module, 600 Lumens, 90 CRI, 3000K, 120V, Phase Cut 1% Dimming, Matte White Trim, White Baffle and Black Baffle Included
Halo Recessed RLD4069301EWH 4" Deep Baffle Retrofit LED Module, 600 Lumens, 90 CRI, 3000K, 120V, Phase Cut 1% Dimming, Matte White Trim, White Baffle and Black Baffle Included
Halo Recessed RLD4069301EWH 4" Deep Baffle Retrofit LED Module, 600 Lumens, 90 CRI, 3000K, 120V, Phase Cut 1% Dimming, Matte White Trim, White Baffle and Black Baffle Included
Regular price
Price:
$37.34
Regular price
Price:
Sale price
$37.34
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
The Halo RL4 Deep Baffle is a complete LED Baffle-Trim Module for 4-inch aperture recessed downlights; suitable for new construction, remodel and retrofit installation. The regressed lens provides uniform illumination and wet location listing. Precision construction makes any housing AIR-TITE for added savings and code compliance.
PRODUCT SPECIFICATIONS
MODULE - TRIM
The Halo RL4 Deep Baffle is a complete LED Baffle-Trim Module for 4-inch aperture recessed downlights; suitable for new construction, remodel and retrofit installation. The regressed lens provides uniform illumination and wet location listing. Precision construction makes any housing AIR-TITE for added savings and code compliance.
PRODUCT SPECIFICATIONS
MODULE - TRIM
- Module construction includes LED Array, heat sink, reflector, lens, baffle and trim ring.
- Regressed Coilex baffle
- Heat sink designed to conduct heat away from the LED Array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments.
- Mid power LED array provides a uniform source with high efficiency and no pixilation.
- 90 CRI minimum, R9 greater than 50
- Color accuracy within 3 SDCM provide color accuracy and uniformity
- Regressed lens
- Impact-resistant polycarbonate
- Convex form and lamp-like appearance
- Diffuse for even illumination
- Each unit comes with a white baffle insert and black baffle insert.
- Integral 120V 50/60 Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5%.
- Inline electrical quick connect and E26 adapter (provided) provides mains connections
- Consult instruction sheets and quick start guide for more information
- Precision formed spring blades secure module with friction fit to compatible housings.
- Friction blade design allows the RA4 to be installed in any position within the housing aperture (360 degrees)
- Closed cell gaskets achieve restrictive airflow requirements without additional caulking
- UL Certified
- Wet and Damp location listed
- Airtight certified per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2016-E.
- Can be used International Energy Conservation Coe (IECC) and Washington State Energy Code high efficiency luminaire compliance.
- ENERGY STAR listed, reference database for current listings
- Meets State of California voluntary lamp standards
- Lighting Facts labeled
- Five year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
