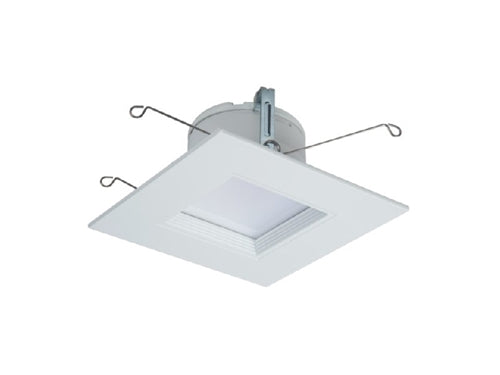

Halo Recessed RSQ5LS9FSD2W1EWH 5" Square All-Purpose LED Retrofit Module, 600/900 Lumens, 90 CRI, Field Selectable 2700K-5000K, 120V, Matte White Flange and Baffle
Halo Recessed RSQ5LS9FSD2W1EWH 5" Square All-Purpose LED Retrofit Module, 600/900 Lumens, 90 CRI, Field Selectable 2700K-5000K, 120V, Matte White Flange and Baffle
Regular price
Price:
$31.00
Regular price
Price:
Sale price
$31.00
Unit price
per
MODEL: Halo-RSQ5LS9FSD2W1EWH
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Module
Module
- The LED module consists of an LED array, optical assembly, driver, and self-flanged trim
- Rotatable square baffle trim
- Achieves L70 at 50,000 hrs in IC (insulation contact) and non-IC applications Selectable System
- Use the CCT select switch to choose between D2W (Dim-to-Warm), 2700K, 3000K, 3500K, 4000K, and 5000K CCT
- D2W option starts at 3000K and warms to 1800K as the fixture dims
- Factory default is set to 3000K
- Use Lumen Select switch to choose the brightness level
- Lumen Select factory default is 900 lm
LED Array
- Mid-power LED array provides a uniform light source with high efficiency and no pixilation
- 90+ CRI minimum, R9 greater than 50
- Color accuracy at 4 SDCM in between endpoints, provides color accuracy and uniformity
Driver
- Integral 120V 60Hz constant current driver provides noise-free, high-efficiency operation
- Dimmable: Continuous, flicker-free dimming from 100% to 5% with compatible leading or trailing edge (LE/TE) 120V phase cut dimmers; (See Dimming Guide for compatible dimmers.)
- Tip: For optimal dimming performance, consider dimmers with low-end trim adjustment; Note that some dimmers require a neutral wire in the box.
- Wiring: Includes inline electrical orange LED Quick Connect and E26 medium socket adapter to provide mains connection
Retention
- Steel torsion springs hold the module securely in the housing
- Optional friction blades included for installation in housings without torsion spring receivers
Trim
- The one-piece step baffle and self-flanged square trim ring provide lens regression and reduce light leaks
- Injection-molded plastic construction is impactresistant and non-corrosive
- Non-conductive construction meets most local dead-front code requirements
Gasket
- Closed-cell gasket achieves restrictive airflow requirements without additional caulking
Overlays (sold separately)
- Overlays are accessory trims that attach to the fixture for a decorative finish
Compliance
- UL Certified for US and Canada, type IC suitable for direct contact with air permeable insulation
- UL Certified for US and Canada for use with HALO housings, classified for use with other’s housings, see instruction sheet for conditions of acceptability
- Wet location listed
- Air-Tite per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance, reference the California Energy Commission Title 20 Appliance Efficiency Database for current listings
- ENERGY STAR® listed, reference database for current listings
- Meets State of California voluntary lamp standards
Warranty
- Five year limited warranty
