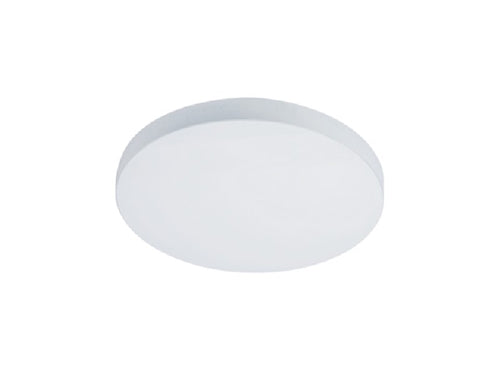

Halo Recessed SMX14RLSFSD2W 14" Round Surface Mount LED Downlight, Lumen Selectable 1200/1600/2000 Lumens, 90 CRI, Field Selectable CCT Dim-to-Warm/2700/3000/3500/4000/5000K, Phase Cut LE/TE 5% 120V, Matte White

Halo Recessed SMX14RLSFSD2W 14" Round Surface Mount LED Downlight, Lumen Selectable 1200/1600/2000 Lumens, 90 CRI, Field Selectable CCT Dim-to-Warm/2700/3000/3500/4000/5000K, Phase Cut LE/TE 5% 120V, Matte White

Price: $81.85
Price: $81.85

MODEL: Halo-SMX14RLSFSD2W
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Module
  • The LED surface mount downlight consists of an LED array, optical assembly, driver, and edgeless trim
  • Achieves L70 at 50,000 hrs in IC (insulation contact) and non-IC application
Selectable System
  • Use the CCT select switch to choose between Dim-to-Warm (D2W), 2700K, 3000K, 3500K, 4000K, and 5000K CCT
  • Note: D2W only available for phase cut fixtures
  • Dim-to-Warm option starts at 3000K and warms to 1800K as the fixture dims
  • Factory default is set to 3000K
  • Use the 3-position Lumen Select switch to choose the brightness level (Low, Medium, High)
  • Lumen Select factory default is to the highest lumen option
LED Array
  • Mid-power LED array provides a uniform light source with high efficiency and no pixilation
  • 90+ CRI minimum, R9 greater than 50
  • Color accuracy at 3SCDM at the endpoints provides color consistency and uniformity
Driver
  • Integral 120V 60Hz constant current driver provides noise-free, high-efficiency operation
  • Phase Cut Dimming: Continuous, flicker-free dimming from 100% to 5% with compatible leading or trailing edge (LE/TE) 120V phase cut dimmers; (See Dimming Guide for compatible dimmers.)
  • 0-10V Dimming: Continuous, flicker-free diming from 100% to 5% with compatible 0-10V 120-277V dimmer; (See Dimming Guide for compatible dimmers.)
  • Tip: For optimal dimming performance, consider dimmers with low-end trim adjustment; Note that some dimmers require a neutral wire in the box.
  • Wiring: Includes optional inline electrical orange LED Quick Connect
Electrical Junction Box Mounting
  • Twist and lock steel mounting bracket to fit snugly to the ceiling
  • Installs from below the ceiling in most 3O (3-1/2") and 4O (4") standard round/octagonal junction boxes
  • May be used in compatible electrical junction boxes in direct contact with insulation
  • Installer must ensure compatibility of fit, wiring, and proper mounting in the electrical junction box. This includes all applicable national and local electrical along with building coded NEMA LSD 57-2013.
  • Reference installation instructions for complete mounting steps
Gasket
  • Closed-cell gasket achieves restrictive airflow requirements without additional caulking.
Decorative Overlays (sold separately)
  • Overlays cover the edge of the fixture while maintaining the edgeless design and are sold as an accessory for a designer finish
  • Paintable Matte White
  • Satin Nickel
  • Matte Black
Compliance
  • cULus certified for US and Canada
  • Wet Location listed for showers and covered outdoor ceilings
  • Airtight per ASTM-E283
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
  • EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
  • Contains no mercury or lead and RoHS compliant*
  • Photometric testing in accordance with IES LM-79-08
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
  • Can be used for State of California Title 24 high efficacy LED compliance under JA8*, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
Warranty
  • Five year limited warranty
