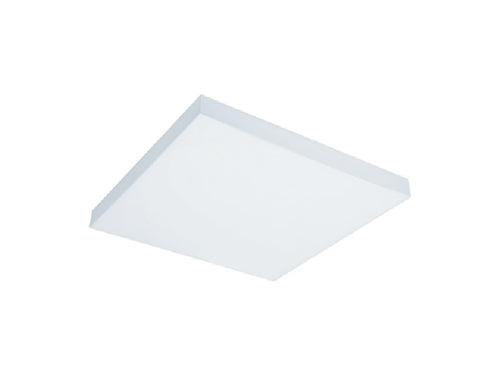

Halo Recessed SMX14SLSFS010 14" Square Surface Mount LED Downlight, Lumen Selectable 1200/1600/2000 Lumens, 90 CRI, Field Selectable CCT 2700/3000/3500/4000/5000K, 0-10V 5% 120-277V, Matte White
Halo Recessed SMX14SLSFS010 14" Square Surface Mount LED Downlight, Lumen Selectable 1200/1600/2000 Lumens, 90 CRI, Field Selectable CCT 2700/3000/3500/4000/5000K, 0-10V 5% 120-277V, Matte White
Regular price
Price:
$102.31
Regular price
Price:
Sale price
$102.31
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Module
Module
- The LED surface mount downlight consists of an LED array, optical assembly, driver, and edgeless trim
- Achieves L70 at 50,000 hrs in IC (insulation contact) and non-IC application
Selectable System
- Use the CCT select switch to choose between Dim-to-Warm (D2W), 2700K, 3000K, 3500K, 4000K, and 5000K CCT
- Note: D2W only available for phase cut fixtures
- Dim-to-Warm option starts at 3000K and warms to 1800K as the fixture dims
- Factory default is set to 3000K
- Use the 3-position Lumen Select switch to choose the brightness level (Low, Medium, High)
- Lumen Select factory default is to the highest lumen option
LED Array
- Mid-power LED array provides a uniform light source with high efficiency and no pixilation
- 90+ CRI minimum, R9 greater than 50
- Color accuracy at 3SCDM at the endpoints provides color consistency and uniformity
Driver
- Integral 120V 60Hz constant current driver provides noise-free, high-efficiency operation
- Phase Cut Dimming: Continuous, flicker-free dimming from 100% to 5% with compatible leading or trailing edge (LE/TE) 120V phase cut dimmers; (See Dimming Guide for compatible dimmers.)
- 0-10V Dimming: Continuous, flicker-free diming from 100% to 5% with compatible 0-10V 120-277V dimmer; (See Dimming Guide for compatible dimmers.)
- Tip: For optimal dimming performance, consider dimmers with low-end trim adjustment; Note that some dimmers require a neutral wire in the box.
- Wiring: Includes optional inline electrical orange LED Quick Connect
Electrical Junction Box Mounting
- Twist and lock steel mounting bracket to fit snugly to the ceiling
- Installs from below the ceiling in most 3O (3-1/2") and 4O (4") standard round/octagonal junction boxes
- May be used in compatible electrical junction boxes in direct contact with insulation
- Installer must ensure compatibility of fit, wiring, and proper mounting in the electrical junction box. This includes all applicable national and local electrical along with building coded NEMA LSD 57-2013.
- Reference installation instructions for complete mounting steps
Gasket
- Closed-cell gasket achieves restrictive airflow requirements without additional caulking.
Decorative Overlays (sold separately)
- Overlays cover the edge of the fixture while maintaining the edgeless design and are sold as an accessory for a designer finish
- Paintable Matte White
- Satin Nickel
- Matte Black
Compliance
- cULus certified for US and Canada
- Wet Location listed for showers and covered outdoor ceilings
- Airtight per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant*
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy LED compliance under JA8*, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2022 JA8 High Efficacy Lighting
Warranty
- Five year limited warranty
