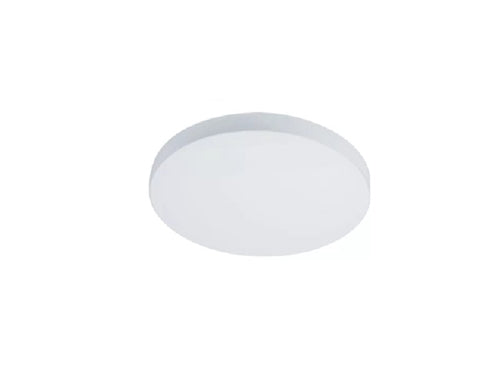

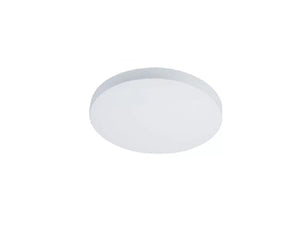

Halo Recessed SMX8RLSFS010 8" Round Surface Mount LED Downlight, Lumen Selectable 900/1200/1500 Lumens, 90 CRI, Field Selectable CCT 2700/3000/3500/4000/5000K, Matte White, 0-10V 5%, 120-277V
Halo Recessed SMX8RLSFS010 8" Round Surface Mount LED Downlight, Lumen Selectable 900/1200/1500 Lumens, 90 CRI, Field Selectable CCT 2700/3000/3500/4000/5000K, Matte White, 0-10V 5%, 120-277V
Regular price
Price:
$50.71
Regular price
Price:
Sale price
$50.71
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Module
Module
- The LED surface mount downlight consists of an LED array, optical assembly, driver, and edgeless trim
- Achieves L70 at 50,000 hrs in IC (insulation contact) and non-IC applications
- Use the CCT select switch to choose between Dim-to-Warm (D2W), 2700K, 3000K, 3500K, 4000K, and 5000K CCT
- Dim-to-Warm option starts at 3000K and warms to 1800K as the fixture dims
- Factory default is set to 3000K
- Use the 3-position Lumen Select switch to choose the brightness level (Low, Medium, High)
- Lumen Select factory default is to the highest lumen option
- Mid-power LED array provides a uniform light source with high efficiency and no pixilation
- 90+ CRI minimum, R9 greater than 50
- Color accuracy at 3 SDCM at the endpoints and 4 SDCM in the middle provide color consistency and uniformity
- Integral 120V 60Hz constant current driver provides noise-free, high-efficiency operation
- Dimmable: Continuous, flicker-free dimming from 100% to 5% with compatible leading or trailing edge (LE/TE) 120V phase cut dimmers; (See Dimming Guide for compatible dimmers.)
- Tip: For optimal dimming performance, consider dimmers with low-end trim adjustment; Note that some dimmers require a neutral wire in the box.
- Wiring: Includes optional inline electrical orange LED Quick Connect and E26 medium socket adapter to provide mains connection
- Twist and lock steel mounting bracket to fit snugly to the ceiling
- Installs from below the ceiling in most 3O (3-1/2") and 4O (4”) standard round/octagonal junction boxes along with compact (pancake) junction boxes
- Mounting bracket covers selectable switches
- May be used in compatible electrical junction boxes in direct contact with insulation, including spray foam insulation
- Installer must ensure compatibility of fit, wiring, and proper mounting in the electrical junction box. This includes all applicable national and local electrical along with building coded NEMA LSD 57-2013.
- Reference installation instructions for complete mounting steps
- Compatible with JB4FR2 for up to 2 hour fire safe protection.
- JB4FR2 Meets UL514A Metallic Outlet Box and is suitable for use in fire-rated ceiling construction that requires up to 2-hour protection per International Building Code Section 714
Recessed Housing Mounting
Non-California versions only
Non-California versions only
- Optional steel torsion springs or friction blades to hold the module securely in a recessed housing
- Installs from below the ceiling to HALO 4" recessed housings with included friction blades
- The included wire nuts, LED connector, and E26 medium socket adapter allow for easy mounting to recessed housings
- Reference installation instructions for complete mounting steps
- May be installed in IC-rated recessed housings that are in direct contact with insulation
NOTE: Not for use in recessed housings in direct contact with spray foam insulation. Refer to NEMA LSD 57-2013
Gasket- Closed-cell gasket achieves restrictive airflow requirements without additional caulking
-
Overlays cover the edge of the fixture while maintaining the edgeless design and are sold as an accessory for a designer finish
- Paintable Matte White
- Satin Nickel
- Matte Black
- Tuscan Bronze
- cULus certified for US and Canada
- Wet Location listed for showers and covered outdoor ceilings
- Airtight per ASTM-E283 (no gasket necessary)
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant*
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- ENERGY STAR certified, reference Certified Light
- Five year limited warranty
