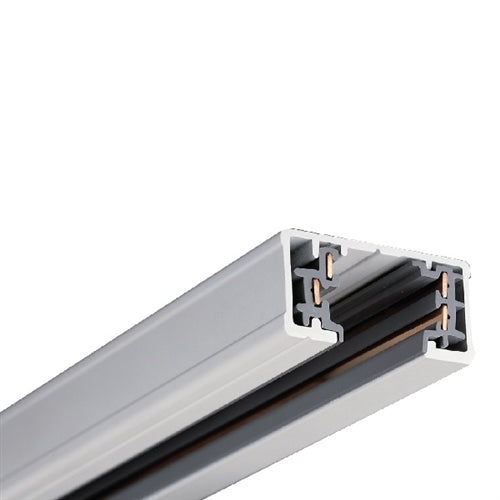

Halo Track Lighting L642MB 8 ft Track - Miniature Two-Circuit Trac System, Black Color
Halo Track Lighting L642MB 8 ft Track - Miniature Two-Circuit Trac System, Black Color
Regular price
Price:
$104.23
Regular price
Price:
Sale price
$104.23
Unit price
per
MODEL: Halo-L642MB
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
Halo-2 Power-Trac system provides two separate 20 AMP circuits. Each circuit can be independently switched. Provides maximum flexibility, with a miniature profile. Suitable for a wide range of commercial, merchandising and residential applications. Electrical capacity is 20 AMPS per circuit when properly balanced. Installing lampholders is simple. An adjustable contact allows selection of the circuit position. Lift or lower the contact until it touches the plastic stop of the assembly. For circuit #1 move contact to the down position. For circuit #2 move contact to the up position. Halo 2-Circuit Track accepts both Halo and Lazer-by-Halo lampholders.
PRODUCT SPECIFICATIONS
Structural
Halo-2 Power-Trac system provides two separate 20 AMP circuits. Each circuit can be independently switched. Provides maximum flexibility, with a miniature profile. Suitable for a wide range of commercial, merchandising and residential applications. Electrical capacity is 20 AMPS per circuit when properly balanced. Installing lampholders is simple. An adjustable contact allows selection of the circuit position. Lift or lower the contact until it touches the plastic stop of the assembly. For circuit #1 move contact to the down position. For circuit #2 move contact to the up position. Halo 2-Circuit Track accepts both Halo and Lazer-by-Halo lampholders.
PRODUCT SPECIFICATIONS
Structural

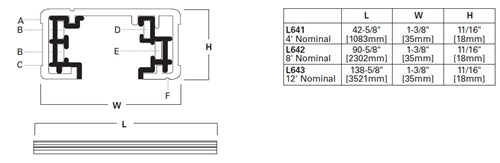

- Extruded aluminum .060" [1.5mm] nominal wall thickness. Halo-2 Power-Trac is 11/16" (17.5mm) deep by 1-3/8" (35mm) wide. Same as HaloMiniature Trac.
- Solid copper bus bars [cross section equivalent to #12 AWG wire. Encased in rigid extruded PVC insulators.
- Rigid extruded polyvinyl insulators.
- Exclusive independent grounding bus conductor.
- Maintains an independent positive ground #12 AWG path between lampholder, Trac channel and building's ground system.
- Cross section equivalent of #12 AWG wire.
- Visual polarity groove indicates proper electrical installation of lampholder adapter. All Halo-2 Power-Trac is shipped fromthe factory with a "LEFT" dead end installed. The L941 Live End Connector is designed to attach to the right hand side of the track.
- Locate small polarity indicator on the connector and align with polarity groove on track.
- cULus listed for use with Halo and Lazer-by-Halo lampholders.
- Track system is recommended for ceiling mount only. For alternate mounting methods consult factory.
