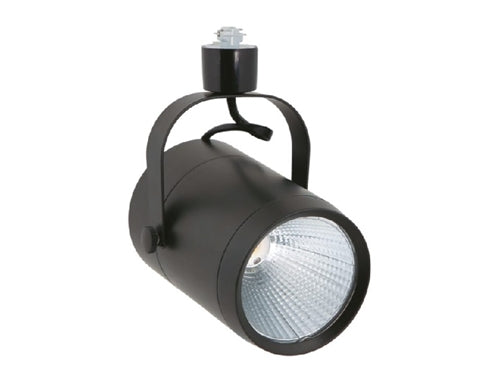

Halo Track Lighting L80830SP9040MB 4" LED Single Circuit Cylinder Track Fixture, 3000 Lumens, Spot 90 CRI 4000K, 120V, Black

Halo Track Lighting L80830SP9040MB 4" LED Single Circuit Cylinder Track Fixture, 3000 Lumens, Spot 90 CRI 4000K, 120V, Black

Price: $293.57
Price: $293.57

MODEL: Halo-L80830SP9040MB
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Aiming
  • Full aiming capable.
  • Can pivot +/-90 degrees vertically and 350 degrees horizontally without adjusting track position.
Design
  • All-metal smooth cylindrical can shape.
  • Yoke-Mounted
  • Available in matte white, matte black, and aluminum haze finishes.
Optics & Light Engine
  • Available in spot, narrow flood, and flood distributions.
  • Proximity phosphors over single chip on board LED provide a uniform source with high efficiency and no pixilation
  • Color accuracy within 2 SDCM and 90 CRI minimum
  • Lumen maintenance L70 at 50,000 hours
  • Low-glare cover glass lens
  • Removable bezel allows for interchangeable optics*
  • Track head accommodates (1) piece of media, and (2) pieces of media in the optional accessory snoot, with (2) media max. per trackhead
Electrical



Dimming
  • Compatible with select leading or trailing edge phase cut dimmers at 120V only, for continuous dimming 5%-100%.**
  • Dimming only available with 120V configurations
  • 277V option available only with Halo HTEK 277V track (L2G track connector must be used)
Complicance
  • cULus Listed and UL Certified
  • DLC Standard and DLC Premium
  • NSF/ANSI 2 (NSF non-food zone compliant)
  • Contains no mercury or lead and RoHS compliant
  • May be used for State of California Title 24 residential compliance per JA8 High Efficacy Lighting certification standards; and Title 24 non-residential code as a dimmable LED luminaire. Refer to the CEC appliance efficiency database
  • EMI/RFI emissions per FCC 47CFR Part 15 Class B consumer limits at 120V; Class A at 277V
  • Photometric testing in accordance with IES LM-79-08.
  • Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
Warranty
  • Five year limited warranty
