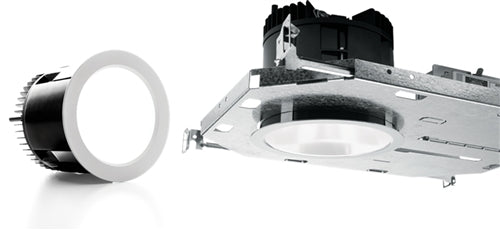

Home > H.E. Williams > H.E. Williams 4DR-TL-L15/830-EM/10W/RTS-DIM1-UNV-OW-OF-CS-N-F1 4.5" LED Downlight, 1500 Lumens, 80 CRI, 3000K, 10W Emergency Battery Pack, 0-10V 1% Dim, 120-277V, Open Reflector, Wide Dist, 1/2" Standard Flange, Clear Semi-Specular Anodize, Open Pan Mount
H.E. Williams 4DR-TL-L15/830-EM/10W/RTS-DIM1-UNV-OW-OF-CS-N-F1 4.5" LED Downlight, 1500 Lumens, 80 CRI, 3000K, 10W Emergency Battery Pack, 0-10V 1% Dim, 120-277V, Open Reflector, Wide Dist, 1/2" Standard Flange, Clear Semi-Specular Anodize, Open Pan Mount
H.E. Williams 4DR-TL-L15/830-EM/10W/RTS-DIM1-UNV-OW-OF-CS-N-F1 4.5" LED Downlight, 1500 Lumens, 80 CRI, 3000K, 10W Emergency Battery Pack, 0-10V 1% Dim, 120-277V, Open Reflector, Wide Dist, 1/2" Standard Flange, Clear Semi-Specular Anodize, Open Pan Mount
Regular price
Price:
$398.48
Regular price
Price:
Sale price
$398.48
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
HOUSING
Die-cast aluminum trim housing and heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
TRIMLOCK
Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.
OPEN REFLECTOR
Low-iridescent anodized aluminum. Clear semi-specular finish standard.
LENSED TRIM
Die-cast aluminum frame with micro-prismatic, acrylic lens.
ELECTRICAL
High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.
MOUNTING
Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L50 and L60 lumen packages.
LISTINGS
HOUSING
Die-cast aluminum trim housing and heat sink. Galvanized steel splice compartment with driver mounting plate/enclosure. Swing-out mounting arms field adjust for ceiling thickness from 1/2″ – 2-1/4″.
TRIMLOCK
Innovative TrimLock reflector retention system ensures the trim remains flush with the ceiling plane.
OPEN REFLECTOR
Low-iridescent anodized aluminum. Clear semi-specular finish standard.
LENSED TRIM
Die-cast aluminum frame with micro-prismatic, acrylic lens.
ELECTRICAL
High-performance Class 2 C.O.B. LED array. Modular quick-connect plug for easy field-connection of LED light assembly to driver. Reported L70>55,000 hours. Reported L90>55,000 hours. Estimated L70 = 200,000 hours.
MOUNTING
Recessed. 20 ga. galvanized steel mounting pan for new construction or IC-rated enclosure. Remodel kit option includes receiver bracket hardware. Minimum 24″ O.C. marked spacing required for L50 and L60 lumen packages.
LISTINGS
-
cCSAus conforms to UL STD 1598; Certified to CAN/CSA STD C22.2 No. 250.0 for dry and damp locations. LED light assembly conforms to UL 2108 for remote installation
-
Suitable for wet location under covered ceiling when specified with WET/CC option or F trim type
-
IC-rated for direct contact with insulation when specified with I Mounting Type
- City of Chicago Environmental Air approved when specified with CP option.
- IP65 rated trim when specified with IP option.
-
Complies with ASTM-E283 when specified with ATH option
-
RoHS compliant
-
Title 24 (JA8) compliant in select configurations, see cacertappliances.energy.ca.gov
-
Complies with the Buy American Act and other federal regulations. Request certification at hew.com/buy-american
WARRANTY
5-year limited warranty
5-year limited warranty
