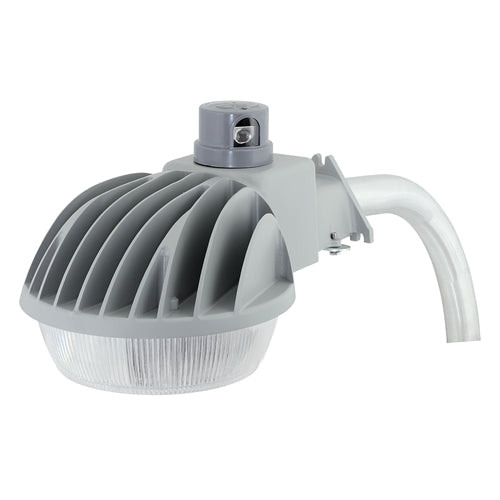

Hubbell DDL-9L1-LR-NA-NPC-TB Multi-purpose Dusk-to-Dawn LED Luminaire

Product Description

• Multi-purpose dusk-to-dawn LED lumianire provides general purpose area/security, roadway and landscape lighting.

Product Specifications

• Low EPA modern styling
• Zero uplight design for environmentally friendly installations
• Up to 5279 lumens with up to industry-leading 121 lumens per watt efficacy
• DLC Qualified - All models
• Symmetric LED lens installed standard; Field rotatable asymmetric LED lens included in 9 LED model
• Refractor provides enhanced security lighting and glare control
• Rugged die-cast aluminum housing with textured gray powder paint provides corrosion resistance and clean finish
• Versatile mounting options include: integral bracket that adjusts to fit both 2-3/8" & 1-5/8" OD mast arms, direct wall/surface mounting
• 24" (18" projection) arm included in 9 LED and 140 LED models
• 120V operation
• 120V twist-lock style photocontrol included

Certifications

• ANSI 3G vibration rated
• DesignLights Consortium (DLC) qualified
• CSA
• Wet listed
