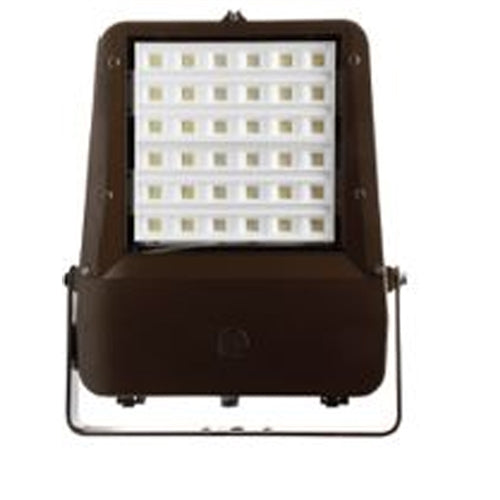

Hubbell Evolve EFH1-01-0-EE-77-7-30-A-A-T1-DKBZ Floodlight, Trunnion Mount, 120-277V, 3000K, 39000 Lumens Bronze Finish

PRODUCT FEATURES
The GE Evolve LED High Output Flood Light is our brightest solution to efficiently illuminate building façade, flag poles, billboard signage and many more traditional flood applications. Designed to replace 250W-400W HPS and 400W-1000W Metal Halide flood lights, the EFH1 provides significant operating cost benefits over the life of each fixture with reduced energy consumption and a long rated life that virtually eliminates ongoing maintenance expenses.

PRODUCT FAMILY SPECIFICATIONS
Applications

• Site, area, and general lighting applications utilizing advanced LED reflective optical system. Housing
• Die-cast aluminum housing.
• Slim architectural design incorporates an integral heat sink and light engine, ensuring maximum heat transfer, long LED life.
• Meets 2G vibration with knuckle mount and 3G with trunnion mount. Optical System
• Evolve light engine consisting of reflective technology designed to optimize application efficiency and minimize glare.
• LM-79 tests and reports are performed in accordance with IESNA standards.
• 70 CRI at 3000K, 4000K and 5000K typical
• NEMA Distributions: 6x5, 6x6, 7x6 and 7x7.

Mounting
Option K

• K1 = Knuckle Slipfitter for 1.9 in. - 2.3 in. OD Tenon, with wires exiting tenon.
• K2 = Knuckle Slipfitter for 1.9 in. - 2.3 in. OD Tenon, external 3ft #14/3 power cable.

Option S

• S1 = Knuckle Slipfitter for 1.9 in. - 3.0 in. (48-76mm) OD Tenon.
• S2 = Knuckle Slipfitter for 1.9 in. - 3.0 in. (48-76mm) OD Tenon, with external 3ft #14/3 power cable.

Option V

• V1 = Knuckle Wall Mount. Lead wires exiting tenon.

Option T

• T1 = Trunnion, with external 3ft #14/3 power cable.

Electrical

• 120-277 VAC and 347-480 VAC available.
• System power factor is >90% and THD <20%.
• ANSI C136.41 PE Socket Standard. Light Grid compatible.
• Dimming: - 0-10V continuous dimming standard. - DALI digital dimming available. Contact manufacturer.
• DALI compatible drivers available in 120-277 VAC. • Surge Protection; per ANSI C136.2-2015. – 6kV/3kA "Basic" surge protection, standard. -- 10kV/5kA "Enhanced" surge protection, optional.

Warranty

• 5yr standard warranty
