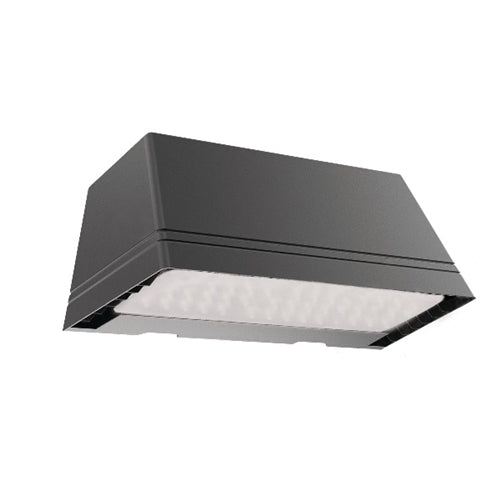

Hubbell Lighting TRP2-24L-90-4K7-3-UNV-DBT 90W Trapezoid Architectural Wallpack, 24 LEDs, 4000K, Type III Distribution, 120-277V, Bronze Finish

Hubbell Lighting TRP2-24L-90-4K7-3-UNV-DBT 90W Trapezoid Architectural Wallpack, 24 LEDs, 4000K, Type III Distribution, 120-277V, Bronze Finish

Price: $931.50
Price: $931.50

MODEL: Hubbell-TRP2-1

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FEATURES
  • Mid sized architectural wallpacks in three stylish shapes
  • Capable of replacing up to 400w HID luminaires
  • Type I, II, III and IV distributions for a wide variety of applications
  • Integral battery backup options
  • Control capabilities offer additional energy savings options
  • Zero uplight distributions
  • Inverted mounting capable for under canopy and facade lighting

PRODUCT SPECIFICATIONS
CONSTRUCTION
  • Die-cast aluminum housing and door
  • Seven powder coat standard finishes, plus custom color options
OPTICS
  • 24 or 32 high power LEDs deliver up to 10,800 lumens
  • Up to 146 lumens per watt
  • Different lenses offer a variety of distribution patterns - Type I, II, III and IV (Forward throw)
  • 3000K - 70 CRI, 4000K - 70 CRI and 5000K - 70 CRI, CCT nominal
INSTALLATION
  • Quick-mount adapter with gasket seal provides easy installation to wall or to recessed junction box (4" square junction box). Fixture attaches by two Allen-head hidden fasteners for tamper resistance
  • Black box accessory available for surface conduit application
ELECTRICAL
  • Optional Dual Drivers & Dual Power Feeds for 50, 70 and 90 watt versions
  • 120-277, 347 and 480 voltage, 50/60Hz
  • Power factor > 90%
  • THD (Total Harmonic Distortion) <20%
CONTROLS
  • In addition, GeoPak Size 2 can be specified with SiteSync wireless control system for reduction in energy and maintenance cost while optimizing light quality 24/7.
CERTIFICATIONS
  • IP65 rated housing
  • DesignLights Consortium (DLC) qualified.
  • Zero uplight (U0), dark sky, neighbor friendly
  • Drivers IP66 and RoHS compliant
WARRANTY
5 year limited warranty
