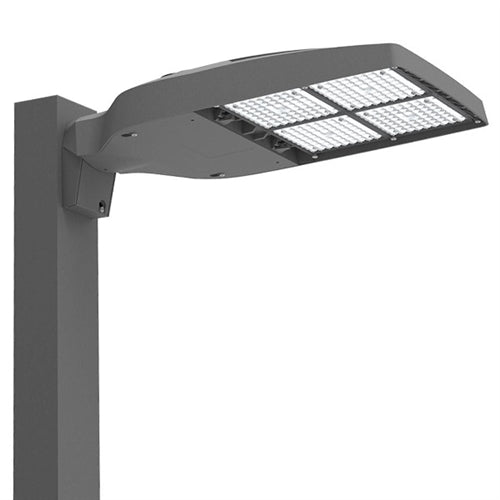

Hubbell Outdoor Lighting ASL1-160L-100-3K7-4F-UNV-A Sling Microstrike, 12000 Lumens, 3000K, 70 CRI, Type 4F Distribution, 120-277V, Arm for Square Poles with S2 Drill Pattern
Hubbell Outdoor Lighting ASL1-160L-100-3K7-4F-UNV-A Sling Microstrike, 12000 Lumens, 3000K, 70 CRI, Type 4F Distribution, 120-277V, Arm for Square Poles with S2 Drill Pattern
Regular price
Price:
$914.28
Regular price
Price:
Sale price
$914.28
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
-
Die-cast housing with hidden vertical heat fins that are optimal for heat dissipation while keeping a clean smooth outer surfac
-
Corrosion resistant, die-cast aluminum housing with powder coat paint finis
-
Separate optical and electrical compartment for improved thermal management and optimum component operatio
- TGIC thermoset polyester powder paint finish applied at nominal 2.5 mil thickness
- Entire optical aperture illuminates to create a larger luminous surface area resulting in a low glare appearance without sacrificing optical performance
- Premium engineered individual acrylic lenses deliver IES Type 2, 3, 4F, 4W and 5QW distributions
- Lens distributions are field rotatable (in 90˚ increments) or exchangeable for job site fine-tuning
- 3000K, 4000K or 5000K (70 CRI) CCT
- 80, 160 or 320 midpower LEDs
- 3000K, 4000K or 5000K (70 CRI) CCT
- Zero uplight at 0 degrees of tilt
- Field rotatable optics
- Tool-less entry to wiring/driver compartment optional
- Arm mounting works with S2 drill pattern
- Fixture ships with square mounting block for ease of installation
- Mast arm fitter accessory or option available for 2-3/8” OD brackets with vertical tilt of +3°, 0° or -3°
- Universal 120-277 VAC or 347-480 VAC input voltage, 50/60 Hz
- Ambient operating temperature -40˚ C to 40˚ C
- Drivers have greater than 90% power factor and less than 20% THD
- LED drivers have output power over-voltage, over-current protection and short circuit protection with auto recovery
- Standard 6kV surge protection with optional field replaceable surge protection device provides 20KA and 10KV protection meeting ANSI/IEEE C62.41.2 Category C High and Surge Location Category C3; Automatically takes fixture off-line for protection when device is consumed
- Photo control, occupancy sensor and Zigbee wireless available for complete on/off and dimming control
- 7-pin ANSI C136.41-2013 photocontrol receptacle option available for twist lock photocontrols or wireless control modules (control accessories sold separately)
- Dimming Drivers are standard and dimming leads are extended out of the luminaire unless control options require connection to the dimming leads. Must specify if wiring leads are to be greater than the 6
- Please consult brand or sales representative when combining control and electrical options as some combinations may not operate as anticipated depending on your application
- Listed to UL1598 and CSA C22.2#250.0-24 for wet locations and 40˚C ambient temperatures
- DLC (DesignLights Consortium Qualified), with some Premium Qualified configurations.
- Not all product variations on this page are DLC Qualified. Refer to http://www.designlights.org/ for the most up-to-date list.
- 1.5G rated for ANSI C136.31 high vibration applications
- IP65 optical assembly
- Meets IDA recommendations using 3K CCT configuration at 0 degrees of tilt
- This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9) and Trade Agreements Act (FAR 52.225-11). See Buy America(n) Solutions (link to https://www.currentlighting.com/resources/america-solutions)
- 5 Year warranty
