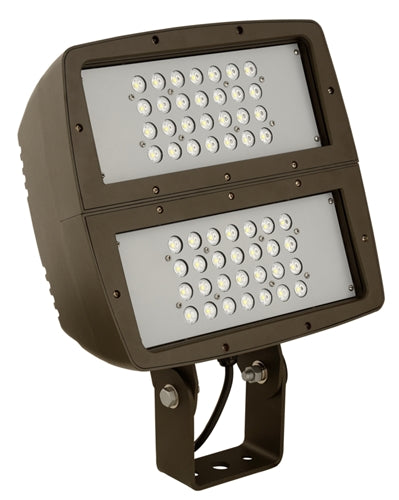

Hubbell Outdoor Lighting FXL-190-Y 200W LED Floodlight, 120-277V, Wide Beam Spread, 16358 Lumens, Bronze Finish

Hubbell Outdoor Lighting FXL-190-Y 200W LED Floodlight, 120-277V, Wide Beam Spread, 16358 Lumens, Bronze Finish

Price: $778.42
Price: $778.42

MODEL: Hubbell-FXL-190-Y

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

Intended Use
Extra large LED flood with a variety of NEMA distribution for lighting applications such as safety/ security, accent, flag pole, columns, area or signs

Construction
  • Corrosion resistant, rugged die-cast aluminum housing with powder coat paint finish
  • Tempered glass lens protects LEDs and allows for easy cleaning/debris removal
  • Vented housing isolates LED module from driver, maximizing product life and performance
  • Visor, louver and vandal accessories available

LED
  • 56 high powered LED’s deliver up to 21,000 lumens
  • 5000K CCT 70 CRI or 4000K 70 CRI
  • 84 high powered LED’s deliver up to 21,000 lumens
  • 5000K CCT 70 CRI, 4000K 70 CRI, 3000K 80 CRI

Optical/Electrical
  • Variety of NEMA distributions - N (3x3), M (4x4),RM (5x4) and W (6x6) - for wide range of lighting applications
  • 120-277V operation, 50/60Hz, 187W, 1050mA, up to 112 LPW (56LED)
  • 120-277V, 347V and 480V operation, 50/60Hz, 193W, 700mA, up to 111 LPW (MTO – 84LED)
  • 10KA surge protector comes standard
  • 0-10V dimming driver standard, continuous dimming option to have leads pulled out for easy connection

Installation
  • Knuckle mount 15˚ aiming angle increments for precise aiming and control, fits 2-3/8" tenons or pipes
  • Heavy duty steel yoke with adjustable stainless steel hardware, mounting holes for one center - 3/4" bolt or two side - 3/8" bolts
  • 3' SEOOW cord with voke mount

Listings
  • IP65, Listed to UL1598 for use in wet locations
  • Select Models DLC Standard and DLC Premium Qualified.
  • EPA = 1.85ft2
