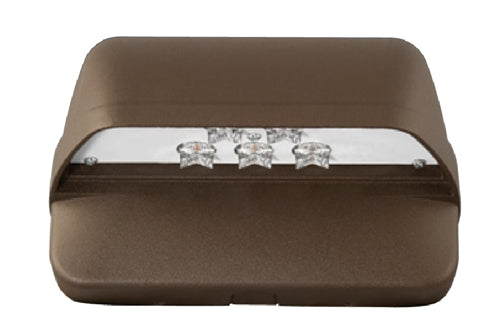

Hubbell Outdoor Lighting LNC-5LU-5K-2-DBS 12.9W 5 LEDs Wallpack, Wall Mount, Full Cut Off, 120-277V, 5000K, Type II Distribution, Dark Brone Gloss Smooth Finish

Hubbell Outdoor Lighting LNC-5LU-5K-2-DBS 12.9W 5 LEDs Wallpack, Wall Mount, Full Cut Off, 120-277V, 5000K, Type II Distribution, Dark Brone Gloss Smooth Finish

Price: $196.79
Price: $196.79

MODEL: Hubbell-LNC-5LU-5K-2-DBS

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
Free shipping for order over $98
Free shipping for order over $98
View full details

description

PRODUCT SPECIFICATIONS
CONSTRUCTION
  • Decorative die-cast aluminum housing and door
  • Rugged design protects internal components and provides excellent thermal management for long life
  • Powder paint finishes provide lasting appearance in outdoor environments
  • Full cut-off distribution; Ambient diffuser included, use for applications near entrances or locations where reduced brightness is desired
OPTICS
  • Drivers are 120-277V, 50/60Hz Type II, III and Type IV lenses provide wide lateral spread
  • 3000K - 80 CRI, 4000K - 70 CRI, and 5000K - 70 CRI, CCT nominal
  • Drivers have greater than .90 power factor and less than 20% Total Harmonic Distortion
INSTALLATION
  • Quick mount adapter provides quick installation, designed for recessed box 4” square junction box
ELECTRICAL
  • 60,000 hours minimum LED life at L96 rating per IESNA TM-21-11
  • Minimum operating temperature is -40 degree C/-40 degree F
  • 0-10V dimming 120-277V only
  • LNC5L -- 5 LEDs, Types II, III or IV available, see page 2 for electrical details
  • LNC7L -- 7 LEDs, Type II, III or IV available, see page 2 for electrical details
  • LNC9L -- 9 LEDs, Types II, III or IV available, see page 2 for electrical details
CONTROLS
  • Photocontrol option is available to provide dusk-to-dawn control for additional energy savings
CERTIFICATIONS
  • Listed and labeled to UL 1598 for wet locations, 25 degree C ambient environments
WARRANTY
  • 5 year limited warranty
