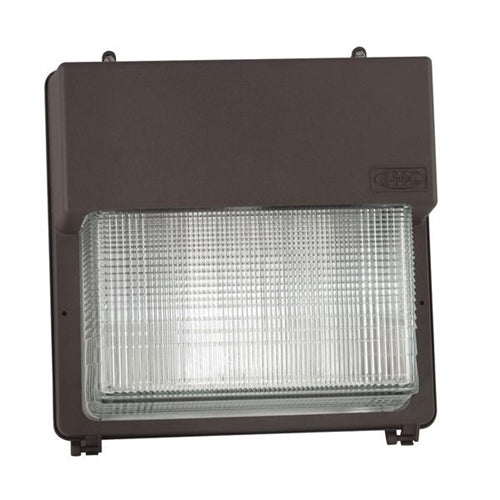

Hubbell Outdoor Lighting PGM3-180L-60-5K7-U-DBT 60W Perimaliter LED Wallpack, Glass Refractor, 180 LEDs, 5000K, 70CRI, 120V-277V, Dark Bronze Finish
Hubbell Outdoor Lighting PGM3-180L-60-5K7-U-DBT 60W Perimaliter LED Wallpack, Glass Refractor, 180 LEDs, 5000K, 70CRI, 120V-277V, Dark Bronze Finish
Regular price
Price:
$658.00
Regular price
Price:
Sale price
$658.00
Unit price
per
MODEL: Hubbell-PGM3-180L-60-5K7-U-DBT
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- The die-cast aluminum housing provides firm mounting over recessed junction boxes
- 3 x 1/2" threaded conduit holes (top and sides) for surface conduit wiring or Photocontrol for dusk-to dawn control
- Two door options available: Cast aluminum frame with prismatic borosilicate glass (PGM3), One piece, prismatic, vandal resistant polycarbonate cover (PVL3)
- Standard finish is dark bronze textured powder paint. The PGM3 version is available in alternate finishes of black, white, gray, platinum silver and custom colors
- 180 high powered LEDs in, produce up to 7102 lumens in PGM3 and 6826 lumens in PVL3
- CCT -- 3000K, 4000K, 5000K (70 CRI)
ELECTRICAL
CONTROLS- 120-277V universal voltage 50/60Hz, 0-10V dimmable
- Driver RoHS and IP66
- Drivers have greater than .90 power factor and less than 20% Total Harmonic Distortion
- 10kA surge protection (parallel); Automatically takes fixture off-line when device is consumed
- Photocell and occupancy sensor options available for complete on/off or programmable dimming control
- Listed to UL1598 for use in wet locations
- 5 year warranty
downloads
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
