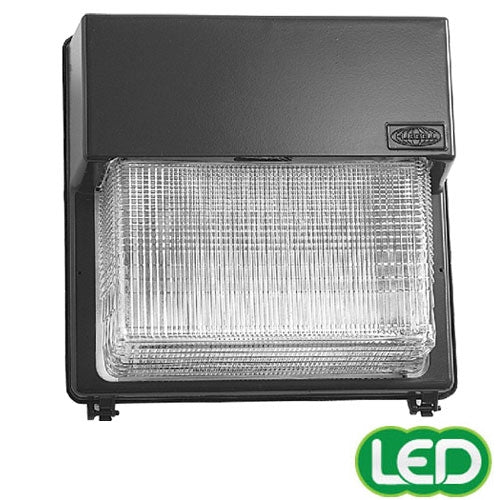

Hubbell Outdoor Lighting PGM3-30LU-5K-BZ 69W Perimaliter LED Wallpack, Glass Refractor, 120V-277V, 5000K, 700mA, Bronze Color

Product Description

• Wall mount perimeter safety, security and identity applications.
• Units provide wide coverage and excellent uniformity.
• Can be spaced 4 to 6 times the mounting height with appropriate wattage

Product Specifications

• Available in energy saving LED, replacing up to 250w HID systems
• Motion sensor, photocell and wireless control options available for energy savings
• Battery back up (BBU) option
• Cast aluminum door with borosilicate glass refractor. Bottom hinge allows door removal. Twin HubbellGard screw closure for positive seal.
• Cast aluminum back housing provides firm mounting and heat dissipation. Mounts over recessed wiring boxes. Has two 1/2" conduit hubs for feed-thru wiring.
• Specular, anodized aluminum reflector panels for vertical lamp provide high performance. Typical spacing is 4-6 times mounting height.
• PGM3 has medium base socket to 150w. 250w units are mogul base. Top 1/2" hub can be used for field installation of PBT button photocontrols or conduit wiring from above.
• Socket is porcelain mogul base with spring-loaded center contact.
• Bronze powder paint finish is standard, other finishes available, consult factory.
• Wire guards and polycarbonate shield accessories are available for refractor protection.

Certifications

• CSA
• Wet listed
