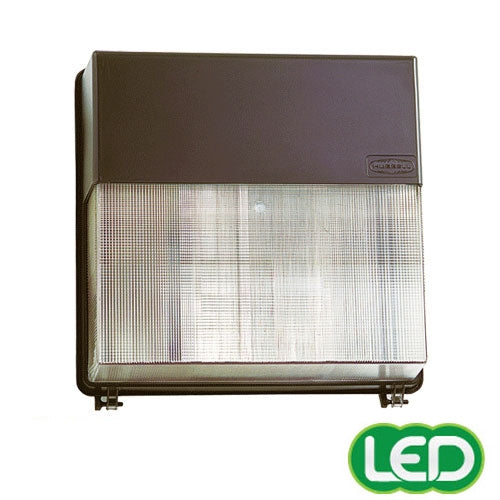

Hubbell Outdoor Lighting PVL3-30LU-4K-BZ 63W Perimaliter LED Wallpack, Polycarbonate Refractor, 30 LEDs, 120-277V, 5337 Lumens, 4000K, Bronze Finish

Product Description

• Perimeter lighting for safety, security and identity.
• Applications include office buildings, shopping centers, restaurants, schools, warehouses, parking garages and other commercial areas.
• Typical mounting is 12-15ft with typical spacing of 60-75ft.

Product Specifications

• Available in energy saving LED, replacing up to 250w HID systems
• One-piece polycarbonate lens, internally painted for lasting appearance. 6 to 1 spacing to mounting height ratio. Two HubbellGard fastners provide weathertight seal to housing. Door hinges and is removable.
• Housing is die cast aluminum for rugged mounting and heat dissipation. 1/2" feed-thru side hubs provided and top photocontrol hub for easy field installation. Standard mount is over recessed wiring boxes.
• Specular reflector, vertical lamp and refractor combine for efficient and uniform perimeter lighting. Max wattage is 150PS or 150HPS. 50HZ ballastry available.
• Socket is porcelain medium base with spring-loaded center contact.

Certifications

• CSA
• Wet listed

Ordering Information
