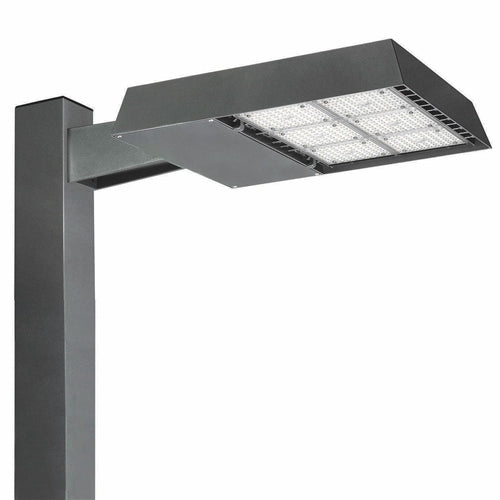

Hubbell Outdoor Lighting RAR2-320L-110-3K7-3-480-ASQ-LGS 110W RATIO LED Area/Site Fixture, 3000K, Type 3, 15000 Lumens, Light Grey Gloss Smooth

Price: $928.67

MODEL: Hubbell-RAR2-127

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION

Rectilinear form mimics the traditional shoebox form factor keeping a similar but updated style and appearance, ideal for retrofit applications
Die-cast housing with hidden vertical heat fins that are optimal for heat dissipation while keeping a clean smooth outer surface
Corrosion resistant, die-cast aluminum housing with powder coat paint finish

OPTICS

Entire optical aperture illuminates to create a larger luminous surface area resulting in a low glare appearance without sacrificing optical performance
80, 160, 320 or 480 midpower LEDs
3000K, 4000K or 5000K (70 CRI) CCT
Zero uplight at 0 degrees of tilt
Field rotatable optics

INSTALLATION

Standard square arm mount, compatible with B3 drill pattern
Optional universal mounting block for ease of installation during retrofit applications. Available as an option or accessory for square and round poles.
Knuckle arm fitter option available for 2-3/8” OD tenon. Max tilt of 60 degrees with 4 degree adjustable increments. (Restrictions apply for 7-pin options)

ELECTRICAL

Universal 120-277 VAC or 347-480 VAC input voltage, 50/60 Hz
Ambient operating temperature -40 degrees C to 40 degrees C
Drivers have greater than 90% power factor and less than 20% THD
LED drivers have output power over-voltage, over-current protection and short circuit protection with auto recovery
Field replaceable surge protection device provides 20kA protection meeting ANSI/ IEEE C62.41.2 Category C High and Surge Location Category C3; Automatically takes fixture off-line for protection when device is compromised

CONTROLS

Photo control, occupancy sensor and wireless available for complete on/off and dimming control
7-pin ANSI C136.41-2013 photocontrol receptacle option available for twist lock photocontrols or wireless control modules (control accessories sold separately)
0- 10 V Dimming Drivers are standard and dimming leads are extended out of the luminaire unless control options require connection to the dimming leads. Must specify if wiring leads are to be greater than the 6" standard
NX Distributed Intelligence available with in fixture wireless control module, features dimming and occupancy sensor

CERTIFICATIONS

DLC (DesignLights Consortium Qualified), with some Premium Qualified configurations. Not all product variations on this page are DLC Qualified. Refer to www.designlights.org for the most up-to-date list.
Listed to UL1598 and CSA C22.2#250.0-24 for wet locations and 40 degrees C ambient temperatures
3G rated for ANSI C136.31 high vibration applications
Fixture is IP66 rated
Meets IDA recommendations using 3K CCT configuration at 0 degrees of tilt
This product qualifies as a “designated country construction material” per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 04/23/2020
