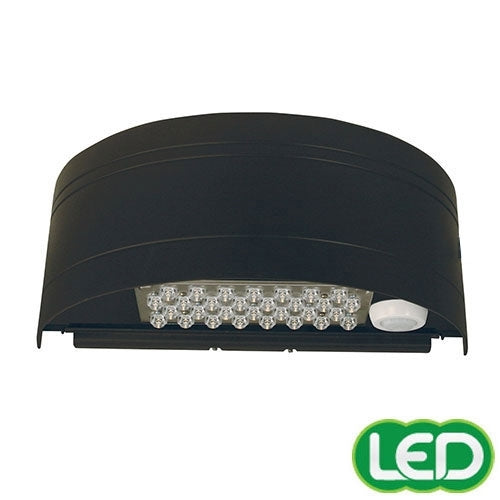

Hubbell Outdoor Lighting RDI1-24L-25-4K7-4W-UNV-DBT 25W Outdoor Round LED Wallpack, 4000K, 70 CRI, Type IV Distribution, 120-277V, Dark Bronze Matte Textured

Price: $571.09

MODEL: Hubbell-RDI1-22

Usually Ships in 4-6 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION

Housing is made from die-cast aluminum with a hinged back-plate for ease of installation and maintenance
Powder paint finish provides durability in outdoor environments. Tested to meet 1000 hour salt spray rating.
Wet Location Listed to UL924 and UL1598 Standard

OPTICS

INSTALLATION

Universal plate for mounting to standard 3 1/2" and 4” square electrical boxes. All connections are made from connections at the rear of the unit
Optional back-box accessory available for surface conduit application.

ELECTRICAL

120-277 and 347-480V operation, 50/60Hz
0-10V dimming driver standard. Dimming leads are extended from the product.
10kA surge protector
Photocell and occupancy sensor options available for complete on/off and dimming control
Intergral Battery Backup provides emergency lighting for the required 90 minute path of egress
Includes a long-life Lithium Iron Phosphate battery with optional battery heater for cold temperature application
Ambient operating temperature -40 degrees C to 40 degrees C
Button photocontrol is suitable for 120-277V operation
Please consult our sales representative when combining control and electrical options as some combinations may not operate as anticipated depending on your application.

CERTIFICATIONS

WARRANTY
