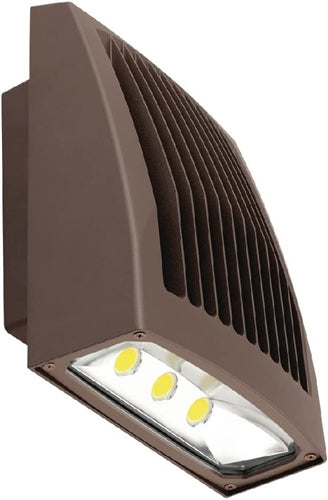

Hubbell Outdoor Lighting SG2-50-4K-PCU 51W Sling LED Wallpack, 4000K, 120-277V, 5526 Lumens, with Photocell, Dark Bonze Finish
Hubbell Outdoor Lighting SG2-50-4K-PCU 51W Sling LED Wallpack, 4000K, 120-277V, 5526 Lumens, with Photocell, Dark Bonze Finish
Regular price
Price:
$329.98
Regular price
Price:
Sale price
$329.98
Unit price
per
MODEL: Hubbell-SG2-50-4K-PCU
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
Intended Use:
Slender wallpack/floodlight available in two sizes for a variety of applications including building perimeter/security lighting, entrances, stairways, loading docks or facades for schools, apartments or commercial buildings.
Construction:
Rugged die-cast aluminum housing with corrosion resistant powder coat finish both protects and provides architectural appearance.
Heat dissipating fins provide superior thermal performance extending the life of the electronic components.
Electrical:
Slender wallpack/floodlight available in two sizes for a variety of applications including building perimeter/security lighting, entrances, stairways, loading docks or facades for schools, apartments or commercial buildings.
Construction:
Rugged die-cast aluminum housing with corrosion resistant powder coat finish both protects and provides architectural appearance.
Heat dissipating fins provide superior thermal performance extending the life of the electronic components.
Electrical:
- 120-277V, 50/60Hz electronic drivers
- 347V and 480V available in larger SG2 housing
- 10KA surge protection included
LED(s) Optics, CCT:
Lenses:
Impact resistant tempered glass offers zero uplight
Comfort lens available as an option or accessory to reduce glare (7-10% lumen reduction) and provide better uniformity
Installation:
Options/Controls
Five year limited warranty
- 3000K, 4000K and 5000K CCT nominal with 70 CRI
- Smaller SG1 housing has 2 LEDs, larger SG2 housing has 3 LEDS, see page 2 for electrical and photometric data
Lenses:
Impact resistant tempered glass offers zero uplight
Comfort lens available as an option or accessory to reduce glare (7-10% lumen reduction) and provide better uniformity
Installation:
- Side hinge allows for easy installation and wiring.
- Side movement avoids damage to the lens and helps prevent injury common in drop down hinge designs.
- Mounts to 4" junction box and includes a gasket to help seal electrical connections.
- Four 1/2" threaded conduit hubs for surface conduit provided
Options/Controls
- Button photocontrol for dusk to dawn energy savings. Stock versions include 120V-277V PC with a cover which provides a choice to engage photocontrol or not. PC is installed in top hub.
- Occupancy sensor available for on/off and dimming control in larger SG2 housing.
- SiteSync wireless lighting control delivers flexible control strategies for reducing power consumption and minimizing maintenance costs while delivering the right light levels with a simple and affordable wireless solution. See ordering information.
- Battery backup options available in larger SG2 housing rated for either 0˚ C or -30˚ C. Performance exceeds NEC requirement providing 1 fc minimum over 10'x10' at 11' mounting height
- Diffused comfort lens provides glare control and improved uniformity. Available as an option or accessory
- DesignLights Consortium (DLC) qualified.
- Listed to UL1598 for use in wet location, listed for -40C to 40C applications
- IDA approved with zero uplight for 3000K and warmer CCTs
- IP65
Five year limited warranty
