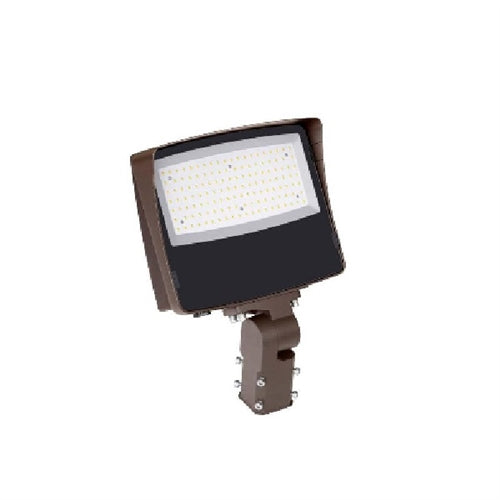

Hubbell Outdoor Lighting SGF2-120-LSCS-UNVC 120W Sling Flood LED, SGF2 Size, Switchable CCT 3000K/4000K/5000K, Knuckle and Trunnion Mount

Hubbell Outdoor Lighting SGF2-120-LSCS-UNVC 120W Sling Flood LED, SGF2 Size, Switchable CCT 3000K/4000K/5000K, Knuckle and Trunnion Mount

Price: $390.07
Price: $390.07

MODEL: Hubbell-SGF2-250
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
  • Die-cast aluminum die-cast housing
  • Built in visor on all fixture sizes
  • Tempered glass lens secured with sealant. Individual components are not field replaceable
  • All units have dark bronze matte textured powder coat finish (matches Current DBT finish)
  • Operating Temp -40C to 40C
  • Powder paint finish provides durability in outdoor environments. Tested to meet 1000 hour salt spray rating.
OPTICS
  • Matte white reflector produces wide 7x7 distribution
  • Beam Angle: 115°x108°
  • Field Angle: 155°x156°
  • Lumen Switchable (3K, 4K, 5K) at 70 CRI

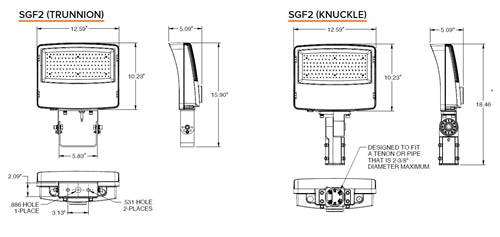

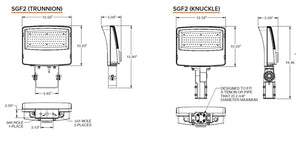

INSTALLATION
  • SGF1 includes knuckle mounting only
  • SGF2 and SGF3 have a slipfitter installed that fits over 2 3/8" tenon. A trunnion mount is included in the box and can be field installed.
ELECTRICAL
  • All configurations are 120-347V
CONTROLS
  • Built in 6kV surge protector
  • SGF1 wattage range from 20-60W
  • SGF2 wattage range from 80-120W
  • SGF3 wattage range from 130-320W
CERTIFICATIONS
  • Listed to UL1598 and CSA C22.2#250.0-24 for wet locations and 40˚C ambient temperatures
  • Wet listed
  • DLC (DesignLights Consortium Qualified), with some Premium Qualified configurations. Not all product variations listed in this document are DLC® qualified. Refer to http:// www.designlights.org for the most up-to-date list
  • IP66 rated housing
WARRANTY
  • 5 year warranty
