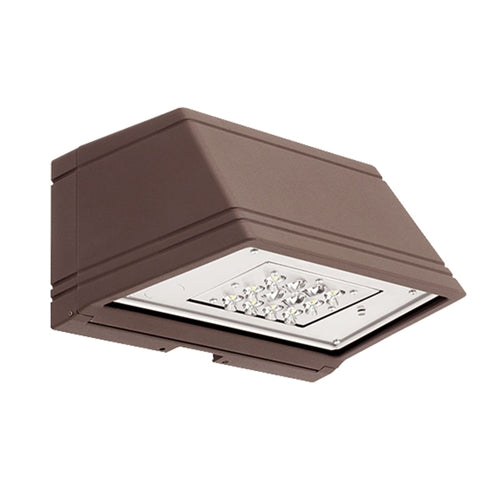

Hubbell Outdoor Lighting TRP1-12L-30-4K7-4-U-DB 30W Outdoor Trapezoid LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 120-277V, 2789 Lumens, Dark Bronze Finish

Hubbell Outdoor Lighting TRP1-12L-30-4K7-4-U-DB 30W Outdoor Trapezoid LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 120-277V, 2789 Lumens, Dark Bronze Finish

Price: $741.51
Price: $741.51

MODEL: Hubbell-TRP1-12L-30-4K7-4-U-DB

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

APPLICATIONS
  • Small sized architectural wallpacks in three stylish shapes with molded contours to accentuate building architecture. Provides excellent illumination in energy-saving LED systems.
  • Back box accessory available for surface conduit application.

Construction:
  • Housing is made from die-cast aluminum with a hinged back-plate for ease of installation and maintenance.
  • The LED bezel and trim-plate are made of stainless steel.
  • Five powder coat standard finishes, plus custom color options.
  • Wet Location Listed to UL924 and UL1598 Standard.

LED:
  • 12 high power LEDs delivering up to 3,000 lumens.
  • Up to 118 lumens per watt
  • Type II, III and IV distributions for a wide variety of applications.
  • Zero uplight (UO), dark sky, neighbor friendly

Electrical:
  • 120-277 operation, 50/60Hz
  • 0-10V dimming driver standard
  • 10kA surge protector
  • Photocell and occupancy sensor options available for complete on/off and dimming control

Battery Backup:
  • Intergral Battery Backup provides emergency lighting for the required 90 minute path of egress.
  • Includes a long-life Lithium Iron Phosphate battery with optional battery heater for cold temperature application.
  • Utilizes 4 LEDs in emergency mode with 657 lumens. Each of the 4 LEDs in emergency are designed to function independently in the unlikely event of a single LED malfunction
  • Spectron self-testing/self-diagnostic electronics are included standard
  • Independent dedicated driver and LED array for battery/emergency mode operation.
Installation:
  • Universal plate for mounting to standard 3 1/2” and 4” square electrical boxes. All connections are made from connections at the rear of the unit.
  • Optional back-box accessory available for surface conduit application. See BB-Geo accessories.

Listings:
  • UL 1598 listed for use in wet locations
  • Drivers IP66 and RoHS compliantDesignLights Consortium (DLC) qualified.
