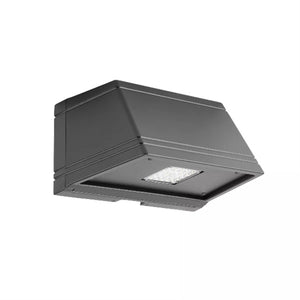

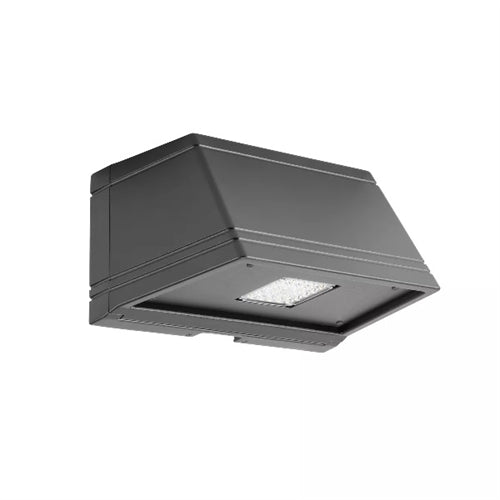

• Hubbell Outdoor Lighting TRP1-24L-25-4K7-4W-UNV-DBT 25W Outdoor Trapezoid LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 120-277V, 2789 Lumens, Dark Bronze Finish
  • Hubbell Outdoor Lighting TRP1-24L-25-4K7-4W-UNV-DBT 25W Outdoor Trapezoid LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 120-277V, 2789 Lumens, Dark Bronze Finish
1 2

Hubbell Outdoor Lighting TRP1-24L-25-4K7-4W-UNV-DBT 25W Outdoor Trapezoid LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 120-277V, 2789 Lumens, Dark Bronze Finish

Hubbell Outdoor Lighting TRP1-24L-25-4K7-4W-UNV-DBT 25W Outdoor Trapezoid LED Wallpack, 12 LEDs, 4000K, 70 CRI, Type IV Distribution, 120-277V, 2789 Lumens, Dark Bronze Finish

Price: $571.09
Price: $571.09

MODEL: Hubbell-TRP1-1

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT SPECIFICATIONS
CONSTRUCTION
  • Housing is made from die-cast aluminum with a hinged back-plate for ease of installation and maintenance
  • Powder paint finish provides durability in outdoor environments. Tested to meet 1000 hour salt spray rating.
  • Wet Location Listed to UL924 and UL1598 Standard

OPTICS
  • 24 mid power LEDs delivering up to 3,000 lumens
  • Up to 118 lumens per watt
  • Type III and IV distributions for a wide variety of applications
  • Zero uplight (UO), dark sky, neighbor friendly

INSTALLATION
  • Universal plate for mounting to standard 3 1/2" and 4" square electrical boxes. All connections are made from connections at the rear of the unit
  • Optional back-box accessory available for surface conduit application.

ELECTRICAL
  • 120-277 and 347-480V operation, 50/60Hz
  • 0-10V dimming driver standard. Dimming leads are extended from the product.
  • 10kA surge protector
  • Photocell and occupancy sensor options available for complete on/off and dimming control
  • Intergral Battery Backup provides emergency lighting for the required 90 minute path of egress
  • Includes a long-life Lithium Iron Phosphate battery with optional battery heater for cold temperature application
  • Ambient operating temperature -40˚C to 40˚C
  • Button photocontrol is suitable for 120- 277V operation
  • Please consult brand or sales representative when combining control and electrical options as some combinations may not operate as anticipated depending on your application.
CERTIFICATIONS
  • Drivers IP66 and RoHS compliant
  • Listed to UL1598 and CSAC22.2#250.0- 24 for wet location
WARRANTY
  • 5 year limited warranty
