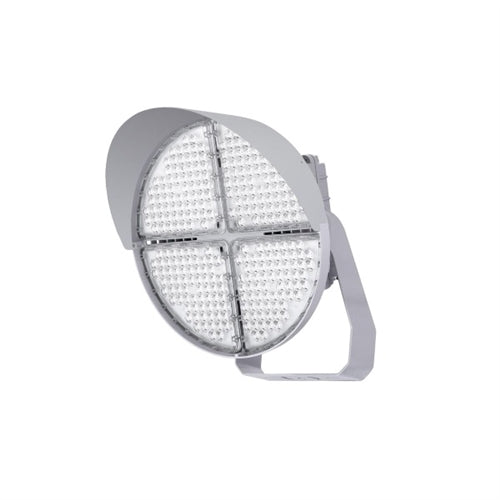

Hubbell Outdoor Lighting TSL-720-4K-UHV-W 740W Turf Sports LED Floodlight, 4000K, 277-480V, 113,205 Lumens, Narrow Flood
Hubbell Outdoor Lighting TSL-720-4K-UHV-W 740W Turf Sports LED Floodlight, 4000K, 277-480V, 113,205 Lumens, Narrow Flood
Regular price
Price:
$2,578.00
Regular price
Price:
Sale price
$2,578.00
Unit price
per
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Heavy duty die cast aluminum housing
- Light engine is thermally isolated from the driver compartment
- UV Stabilized polyester powder paint finish rated for 1000 hour salt spray
- 3G Vibration Rating
- Easy maintenance access to electrical components with removal of five screws from back of fixture housing
- Three available light distributions-15, 30, 60 degree
- High impact UV stabilized polycarbonate outer lens protects LEDs and allows for cleaning and debris removal
INSTALLATION
ELECTRICAL- Yoke can adjust in 5 degree increments up to 180 degrees

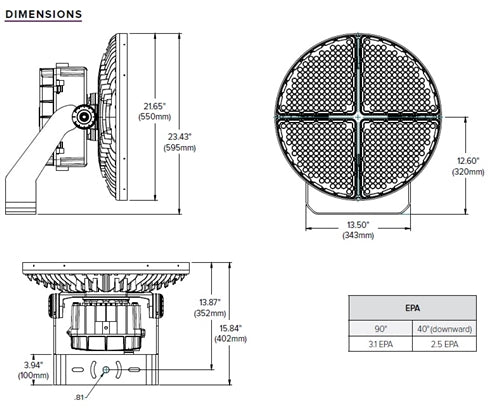

- EPA of front face 3, side face 1.2. Both EPAs calculated when aimed parallel to the field
- EPA of 2.5 when aimed 40o below horizontal
- One captive mounting bolt (3/4" dia.) utilized to install luminaire (Bolt provided by others)
- 0-10 Volt Dimming Driver
- Dimming Drivers available for use with control devices (provided by others). Dimming leads contained in driver housing.
- Universal high voltage driver 277-480 volt 50/60Hz
- Ambient Operating Temperature -40C to 40C
- Drivers have 90% power factor and less than 20% THD
- 6kA surge protector built into driver
- 2% output current ripple at <200Hz
CERTIFICATIONS
WARRANTY- DLC (DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
- Listed to UL1598 for use in wet locations
- IP66 rated housing
- FCC Title 47 Part 15
- 5 year warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
