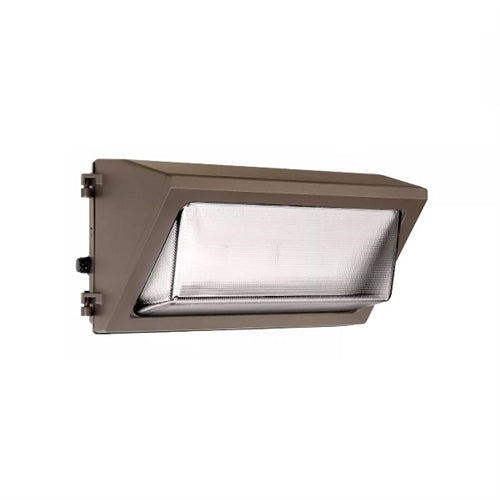

Hubbell Outdoor Lighting WGH3-LSCS 80-120W LED Glass Wallpack, 120-277V, 9800-17,150 Lumens, 4000K/5000K, Bronze Finish
Hubbell Outdoor Lighting WGH3-LSCS 80-120W LED Glass Wallpack, 120-277V, 9800-17,150 Lumens, 4000K/5000K, Bronze Finish
Regular price
Price:
$285.50
Regular price
Price:
Sale price
$285.50
Unit price
per
MODEL: Hubbell-WGH3-LSCS
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FEATURES
CONSTRUCTION
- Three sizes: Small, Medium and Large
- 20–120 Watts
- Field switchable lumens in WGH1 (3000–7000 lumens)
- Field switchable lumens and LED color temperature in WGH2 and WGH3 (4000K, 4500K, & 5000K)
- Standard bronze finish
- Up to 150 lumens per watt
- Borosilicate glass refractor softens LED pixilation and provides uniform distribution
CONSTRUCTION
- Die-cast Aluminum Frame holds and seals to housing with 2 stainless steel screws
- Built in button photocell with shorting cap on WGH2 and WGH3; Available with and with out photocell in WGH1
- Cast aluminum housing has three 1/2" conduit entries on top and sides
- All units have dark bronze matte textured powder coat finish (matches Hubbell DBT finish)
- Operating Temp -40C to 40C
- High efficacies, up to 150 LPW
- Impact resistant borosilicate glass lens
INSTALLATION
ELECTRICAL- Door assembly hinges on side
- Leveling device contained inside the housing for ease of installation
- Universal Voltage (120-277V)
- Dimmable drivers standard
- Built in 6kV surge protector
- WGH1 wattage includes 20, 30, 40, 50
- WGH2 wattage includes 30, 40, 50, 60, 70
- WGH3 wattage includes 80, 90, 100, 110, 120
CERTIFICATIONS
ORDERING INFORMATION
- Listed to UL1598 and CSA C22.2#250.0-24 for wet locations and 40 degree C ambient temperatures
- Wet listed
- Consortium (DLC) standard & premium qualifications
- IP65 rated housing
ORDERING INFORMATION
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
