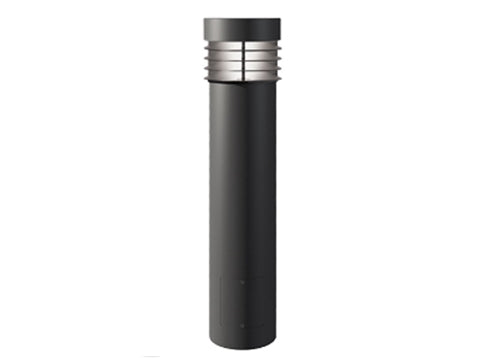

Hydrel 3120C H42 8COB 50K MVOLT SYM LP GR 40" LED Louvered Round Bollard Flat Top, 8COB Lamp Type, 5000K Color Temperature, 120-277V, Symmetrical Distribution, Gray
Hydrel 3120C H42 8COB 50K MVOLT SYM LP GR 40" LED Louvered Round Bollard Flat Top, 8COB Lamp Type, 5000K Color Temperature, 120-277V, Symmetrical Distribution, Gray
Regular price
Price:
$2,028.00
Regular price
Price:
Sale price
$2,028.00
Unit price
per
MODEL: Hydrel-3120C-1069712
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
MATERIAL: Copper-free aluminum, A360.
LED ARRAY: 72W and 84W (total system input wattage) Lumen maintenance of individual light sources have been independently tested to IESNA LM-80 standards. All within 3 MacAdam ellipses.
VOLTAGE: MVOLT 50/60Hz, 120, 277 or 347
DISTRIBUTION: SYM - Symmetric, FT - Forward Throw
LENS: Frosted borosilicate glass.
POWER SUPPLY: Integrally mounted LED driver run at 300mA, -20°C through 50°C standard. Alternate driver run at 250mA, -40°C through 50°C used with IDIM and BLS.
FINISH: Super durable polyester TGIC powder coat finish (standard). Optional zinc undercoat for harsh environments.
FASTENERS: Stainless Steel.
LISTING: cCSAus, suitable for wet locations, laboratory tests conducted by CSA to UL Standard UL-1598 and UL-8750.
BUY AMERICAN: This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT. Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty.
MATERIAL: Copper-free aluminum, A360.
LED ARRAY: 72W and 84W (total system input wattage) Lumen maintenance of individual light sources have been independently tested to IESNA LM-80 standards. All within 3 MacAdam ellipses.
VOLTAGE: MVOLT 50/60Hz, 120, 277 or 347
DISTRIBUTION: SYM - Symmetric, FT - Forward Throw
LENS: Frosted borosilicate glass.
POWER SUPPLY: Integrally mounted LED driver run at 300mA, -20°C through 50°C standard. Alternate driver run at 250mA, -40°C through 50°C used with IDIM and BLS.
FINISH: Super durable polyester TGIC powder coat finish (standard). Optional zinc undercoat for harsh environments.
FASTENERS: Stainless Steel.
LISTING: cCSAus, suitable for wet locations, laboratory tests conducted by CSA to UL Standard UL-1598 and UL-8750.
BUY AMERICAN: This product is assembled in the USA and meets the Buy America(n) government procurement requirements under FAR, DFARS and DOT. Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
