Hydrel HSL13 6INCH LED 40K MVOLT L MIN5 BB BRB 6" LED Step Light, 4000K Color Temperature, 120-277V, Long Throw Distribution, Dimming Driver, Back Box, Brushed Brass
Hydrel HSL13 6INCH LED 40K MVOLT L MIN5 BB BRB 6" LED Step Light, 4000K Color Temperature, 120-277V, Long Throw Distribution, Dimming Driver, Back Box, Brushed Brass
Regular price
Price:
$912.04
Regular price
Price:
Sale price
$912.04
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
Die-cast housing with solid aluminum, brass, or stainless steel faceplate.
Source
Light source consists of eight powerful LEDs available in five static white color temperatures/80CRI & six colored LED choices. All within a 3MacAdam ellipse
Optics
A concealed optic provides a long light distribution for illumination of large areas.
Electrical
Integral electronic driver for 120 through 277v/50-60Hz input. Standard 0-10V dimming to 5%. THD: <20%. PFC: > 0.90. Complies to FCC CFR Title 47 Part 15, Class B at 120v and Class A at 277v EMI noise rating.
Mounting
HSL13 3LONG: Designed to mount to a Steel City 72171 square junction box (BB option from Hydrel or by others) or equivalent.
HSL13 6LONG: Designed to mount to a Steel City 4G4D multi-gang junction box
(BB option from Hydrel or by others) or equivalent.HSL13 9LONG: Designed to mount to a Steel City H4BD multi-gang junction box
(BB option from Hydrel or by others) or equivalent. SL13 12LONG: Designed to mount to a Steel City H6BD multi-gang junction box
(BB option from Hydrel or by others) or equivalent.
Source
Light source consists of eight powerful LEDs available in five static white color temperatures/80CRI & six colored LED choices. All within a 3MacAdam ellipse
Optics
A concealed optic provides a long light distribution for illumination of large areas.
Electrical
Integral electronic driver for 120 through 277v/50-60Hz input. Standard 0-10V dimming to 5%. THD: <20%. PFC: > 0.90. Complies to FCC CFR Title 47 Part 15, Class B at 120v and Class A at 277v EMI noise rating.
Mounting
HSL13 3LONG: Designed to mount to a Steel City 72171 square junction box (BB option from Hydrel or by others) or equivalent.
HSL13 6LONG: Designed to mount to a Steel City 4G4D multi-gang junction box
(BB option from Hydrel or by others) or equivalent.HSL13 9LONG: Designed to mount to a Steel City H4BD multi-gang junction box
(BB option from Hydrel or by others) or equivalent. SL13 12LONG: Designed to mount to a Steel City H6BD multi-gang junction box
(BB option from Hydrel or by others) or equivalent.
Lens
Extruded clear acrylic optic lens concealed in reflector housing
Circuiting
Single circuit
Lens
Extruded clear acrylic optic lens concealed in reflector housing
Extruded clear acrylic optic lens concealed in reflector housing
Circuiting
Single circuit
Lens
Extruded clear acrylic optic lens concealed in reflector housing
Circuiting
Single circuit
Environment
Wet location.
Single circuit
Environment
Wet location.
Government Procurement
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Listing
ETL / cETL
Finish

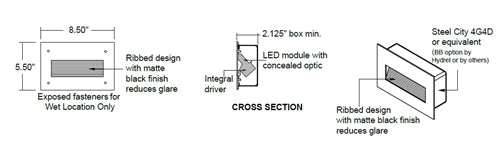

Recessed surfaces have a ribbed design with matte black finish to reduce glare.
Faceplates are available in four metal finishes with protective clear coat or one of four polyester powder coat painted finishes.
Warranty
5-year limited warranty.
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Listing
ETL / cETL
Finish
Recessed surfaces have a ribbed design with matte black finish to reduce glare.
Faceplates are available in four metal finishes with protective clear coat or one of four polyester powder coat painted finishes.
Warranty
5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
