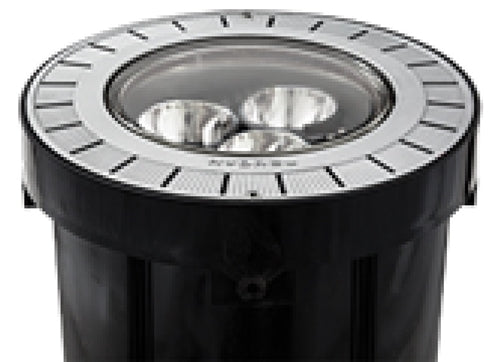

Home > Lithonia Lighting > Hydrel M9710C SS LED P3 40K MVOLT MFL FLC 34B 34S 46W In-Grade LED Lanscape Light, Round Door Single Lens, Stainless Steel Door, 4000K, 120-277V, Medium Flood Distribution, Flat Lens Clear, 3/4" NPT Bottom, 3/4" NPT Side
Hydrel M9710C SS LED P3 40K MVOLT MFL FLC 34B 34S 46W In-Grade LED Lanscape Light, Round Door Single Lens, Stainless Steel Door, 4000K, 120-277V, Medium Flood Distribution, Flat Lens Clear, 3/4" NPT Bottom, 3/4" NPT Side
Hydrel M9710C SS LED P3 40K MVOLT MFL FLC 34B 34S 46W In-Grade LED Lanscape Light, Round Door Single Lens, Stainless Steel Door, 4000K, 120-277V, Medium Flood Distribution, Flat Lens Clear, 3/4" NPT Bottom, 3/4" NPT Side
Regular price
Price:
$3,302.00
Regular price
Price:
Sale price
$3,302.00
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
INTENDED USE: The M9700C LED incorporates a modular design with a water-tight module and junction box intended for applications with flow-through capability. The design of the housing starts at the rough-in sections with a molded junction box and holes at the bottom, allowing a
INTENDED USE: The M9700C LED incorporates a modular design with a water-tight module and junction box intended for applications with flow-through capability. The design of the housing starts at the rough-in sections with a molded junction box and holes at the bottom, allowing a
pathway for the water to flow through the housing and drain out the bottom. This product is ideal for all outdoor uplight applications, such as wall washing and feature accentuation.
DOOR MATERIAL: Cast aluminum, cast bronze or stainless steel. Available in round or square door trim. Finish is natural aluminum or bronze. Stainless steel door is brushed finish. Aluminum doors may be painted. See ordering guide.
ROUGH-IN SECTION: Injection molded polymer with integral junction box for thru-branch wiring. The housing is U.V. stabilized, impact and corrosion resistant for use in all types of environments. The rough-in houses the LED and power module components and top door finishing section. Potting compound (PC21) recommended for junction box splices. PC21 sold separately.
CONDUIT ENTRIES: Two (2) bottom or side entries available. Box suitable for through-branch wiring. Splicing volume is 25 in3 (410 ccm)
FINISHING SECTION: Double lens design includes door assembly with 360 degrees Aim-Lock module support and tilt ring that allows 15 degrees of aiming. Active optical lenses are also available. Module indexing provides easy maintenance without re-aiming. Door trim locks into position with two stainless steel captive, tamper-resistant fasteners.
LED MODULE: Stainless steel housing, factory-sealed and purged of all moisture for longer component life. The LED module is suspended below the top door lens in a surface adjustable, 15 degrees tilt mechanism. Lens is sealed with silicone gasket and stainless steel clamp band assembly with single fastener. Electrical connection to LED module is done through a submersible quick disconnect plug connector with gold-plated contacts.
LIGHT ENGINE: Light engines consist of chip-on-board (COB) LEDs directly coupled to the housing to maximize heat dissipation and promote long life (100,000 hrs, L92). Heat generated by LEDs is dissipated into and through the fixture housing, and adds less than 15 degrees C to steady state operating lens temperature. For example, in a typical 25 degrees C (77 degrees F) operating environment, lens temperature would not exceed 40 degrees C (104 degrees F). All within 3 MacAdam ellipses
POWER MODULE: LED driver is encapsulated in a custom heat-dissipating epoxy resin that eliminates all moisture intrusion. Module is provided with submersible rated cord leads for connection to integral junction box and LED module.
ELECTRICAL: MVOLT (120-277) 50/60 Hz LED power supply. Class 1 electronic driver has a power factor >90%, THD <20%, and has an expected life of 100,000 hours with <1% failure rate. Surge protection meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
LISTING: cCSAus, suitable for wet locations, laboratory tests conducted by CSA to UL Standard UL-1598 and UL-8750.
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty.
DOOR MATERIAL: Cast aluminum, cast bronze or stainless steel. Available in round or square door trim. Finish is natural aluminum or bronze. Stainless steel door is brushed finish. Aluminum doors may be painted. See ordering guide.
ROUGH-IN SECTION: Injection molded polymer with integral junction box for thru-branch wiring. The housing is U.V. stabilized, impact and corrosion resistant for use in all types of environments. The rough-in houses the LED and power module components and top door finishing section. Potting compound (PC21) recommended for junction box splices. PC21 sold separately.
CONDUIT ENTRIES: Two (2) bottom or side entries available. Box suitable for through-branch wiring. Splicing volume is 25 in3 (410 ccm)
FINISHING SECTION: Double lens design includes door assembly with 360 degrees Aim-Lock module support and tilt ring that allows 15 degrees of aiming. Active optical lenses are also available. Module indexing provides easy maintenance without re-aiming. Door trim locks into position with two stainless steel captive, tamper-resistant fasteners.
LED MODULE: Stainless steel housing, factory-sealed and purged of all moisture for longer component life. The LED module is suspended below the top door lens in a surface adjustable, 15 degrees tilt mechanism. Lens is sealed with silicone gasket and stainless steel clamp band assembly with single fastener. Electrical connection to LED module is done through a submersible quick disconnect plug connector with gold-plated contacts.
LIGHT ENGINE: Light engines consist of chip-on-board (COB) LEDs directly coupled to the housing to maximize heat dissipation and promote long life (100,000 hrs, L92). Heat generated by LEDs is dissipated into and through the fixture housing, and adds less than 15 degrees C to steady state operating lens temperature. For example, in a typical 25 degrees C (77 degrees F) operating environment, lens temperature would not exceed 40 degrees C (104 degrees F). All within 3 MacAdam ellipses
POWER MODULE: LED driver is encapsulated in a custom heat-dissipating epoxy resin that eliminates all moisture intrusion. Module is provided with submersible rated cord leads for connection to integral junction box and LED module.
ELECTRICAL: MVOLT (120-277) 50/60 Hz LED power supply. Class 1 electronic driver has a power factor >90%, THD <20%, and has an expected life of 100,000 hours with <1% failure rate. Surge protection meets a minimum Category C Low operation (per ANSI/IEEE C62.41.2).
LISTING: cCSAus, suitable for wet locations, laboratory tests conducted by CSA to UL Standard UL-1598 and UL-8750.
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty.
