Home > Lithonia Lighting > Hydrel PALM A P1 80CRI 40K 120 50DEG FLC KM C1 BRS Accent LED Light, Aluminum, P1 Performance Package, 80 CRI, 4000K, 120V, 50 Degrees Distribution, Flat Clear Lens, Knuckle Mount, Short Flush Cap, Bronze

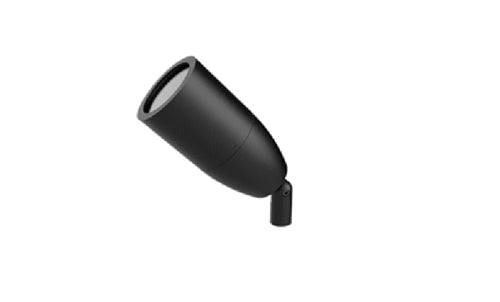

Hydrel PALM A P1 80CRI 40K 120 50DEG FLC KM C1 BRS Accent LED Light, Aluminum, P1 Performance Package, 80 CRI, 4000K, 120V, 50 Degrees Distribution, Flat Clear Lens, Knuckle Mount, Short Flush Cap, Bronze
Hydrel PALM A P1 80CRI 40K 120 50DEG FLC KM C1 BRS Accent LED Light, Aluminum, P1 Performance Package, 80 CRI, 4000K, 120V, 50 Degrees Distribution, Flat Clear Lens, Knuckle Mount, Short Flush Cap, Bronze
Regular price
Price:
$690.77
Regular price
Price:
Sale price
$690.77
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
MATERIAL: Body, caps and knuckle machined from 6061-T6 Aluminum. BR - machined from 360
MATERIAL: Body, caps and knuckle machined from 6061-T6 Aluminum. BR - machined from 360
brass.
LIGHT SOURCE: Proprietary high output LEDs. Units have near constant light output when supplied with 11VAC-14VAC to combat voltage drop. All within 3 MacAdam ellipses
VOLTAGE: 12 Volt AC. 120 Volt AC.
DISTRIBUTION: Available in 15DEG, 20DEG, 25DEG, 30DEG, 35DEG, 40DEG, 45DEG, 50DEG, 55DEG
LENS: FLC - Lens cut from heat strengthened borosilicate glass for superior clarity and strength. WSL - Molded heat strengthened borosilicate glass for superior clarity and strength, where the glass and the top of the door are flush to allow water to shed off the fixture.
MOUNTING: Knuckle is 1/2" NPSM, mounts to 7/8" thru hole. KM option allows to tilt the fixture up to 180°. 350R option allows to tilt the fixture up to 180° and rotate up to 350°.
POWER SUPPLY: Remote 12VAC transformer purchased separately. For 120VAC driver is integral. 12VAC dimmable using a remote magnectic transfomer. 120VAC dimmable using a standard Triac dimming switch/systems.
FINISH: Super durable Polyester TGIC powder coat finish (standard). Optional Zinc undercoat for harsh environments.
FEATURES: Tapered “Sure Lock” knuckle seat for innite aiming and an unparalleled locking ability.
Any combination of up to 2 lens accessories/color filter/shielding can be specied for cap style and are held securely by a removable stainless steel clip ring. 350° rotational knuckle also available.
LISTING: cCSAus, Wet Location. Laboratory tests conducted by CSA to UL Standards
UL-1598, UL-8750 and UL-1838. IP66 Rated.
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
WARRANTY: 5-year limited warranty
LIGHT SOURCE: Proprietary high output LEDs. Units have near constant light output when supplied with 11VAC-14VAC to combat voltage drop. All within 3 MacAdam ellipses
VOLTAGE: 12 Volt AC. 120 Volt AC.
DISTRIBUTION: Available in 15DEG, 20DEG, 25DEG, 30DEG, 35DEG, 40DEG, 45DEG, 50DEG, 55DEG
LENS: FLC - Lens cut from heat strengthened borosilicate glass for superior clarity and strength. WSL - Molded heat strengthened borosilicate glass for superior clarity and strength, where the glass and the top of the door are flush to allow water to shed off the fixture.
MOUNTING: Knuckle is 1/2" NPSM, mounts to 7/8" thru hole. KM option allows to tilt the fixture up to 180°. 350R option allows to tilt the fixture up to 180° and rotate up to 350°.
POWER SUPPLY: Remote 12VAC transformer purchased separately. For 120VAC driver is integral. 12VAC dimmable using a remote magnectic transfomer. 120VAC dimmable using a standard Triac dimming switch/systems.
FINISH: Super durable Polyester TGIC powder coat finish (standard). Optional Zinc undercoat for harsh environments.
FEATURES: Tapered “Sure Lock” knuckle seat for innite aiming and an unparalleled locking ability.
Any combination of up to 2 lens accessories/color filter/shielding can be specied for cap style and are held securely by a removable stainless steel clip ring. 350° rotational knuckle also available.
LISTING: cCSAus, Wet Location. Laboratory tests conducted by CSA to UL Standards
UL-1598, UL-8750 and UL-1838. IP66 Rated.
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
WARRANTY: 5-year limited warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
