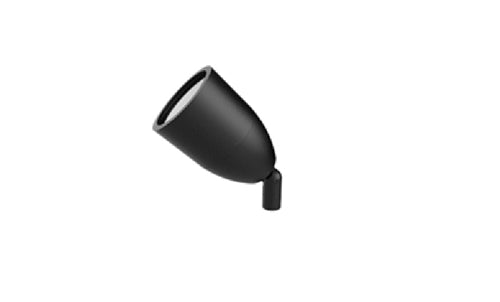

Hydrel PINE P2 90CRI 30K MVOLT 25DEG FLC KM PM60C L2 C2 BL 53W Accent LED Light, P2 Package, 90 CRI, 3000K, 120-277V, 25 Degrees Distribution, Flat Clear Lens, Knuckle Mount, Post Mount, Linear Spread Lens, Recessed Lens External Cap, Black Textured
Hydrel PINE P2 90CRI 30K MVOLT 25DEG FLC KM PM60C L2 C2 BL 53W Accent LED Light, P2 Package, 90 CRI, 3000K, 120-277V, 25 Degrees Distribution, Flat Clear Lens, Knuckle Mount, Post Mount, Linear Spread Lens, Recessed Lens External Cap, Black Textured
Regular price
Price:
$1,100.55
Regular price
Price:
Sale price
$1,100.55
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
MATERIAL: Body cast from 356-T6 Aluminum, Cap knuckle machined from 6061-T6 Aluminum.
MATERIAL: Body cast from 356-T6 Aluminum, Cap knuckle machined from 6061-T6 Aluminum.
LIGHT SOURCE: Proprietary high output LEDs. Units have near constant light output when supplied with aaVAC to combat voltage drop. All within 3 MacAdam ellipses.
VOLTAGE: MVOLT
DISTRIBUTION: 15DEG, 20DEG, 25DEG, 30DEG, 35DEG, 40DEG, 45DEG, 50DEG, 55DEG
LENS: FLC - Cut from heat strengthened borosilicate glass for superior clarity and strength. WSL -Molded heat strengthened borosilicate glass for superior clarity and strength, where the glass and the top of the door are flush to allow water to shed off the fixture.
MOUNTING: Knuckle is 1/2" NPSM, mounts to 7/8" thru hole.
ELECTRICAL: Integral MVOLT LED driver. 120VAC Dimmable with standard Triac or ELV dimming system.
FINISH: Super durable polyester TGIC powder coat finish (standard). Optional Zinc undercoat for harsh environments.
FEATURES: Any combination of up to 2 lens accessories/color filter/shielding can be specified in any cap style and are held securely by a removable stainless steel clip ring.
LISTING: cCSAus, Wet location. Laboratory tests conducted by CSA to UL Standards UL-1598, UL-8750 and UL-1838. IP66 Rated
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty.
VOLTAGE: MVOLT
DISTRIBUTION: 15DEG, 20DEG, 25DEG, 30DEG, 35DEG, 40DEG, 45DEG, 50DEG, 55DEG
LENS: FLC - Cut from heat strengthened borosilicate glass for superior clarity and strength. WSL -Molded heat strengthened borosilicate glass for superior clarity and strength, where the glass and the top of the door are flush to allow water to shed off the fixture.
MOUNTING: Knuckle is 1/2" NPSM, mounts to 7/8" thru hole.
ELECTRICAL: Integral MVOLT LED driver. 120VAC Dimmable with standard Triac or ELV dimming system.
FINISH: Super durable polyester TGIC powder coat finish (standard). Optional Zinc undercoat for harsh environments.
FEATURES: Any combination of up to 2 lens accessories/color filter/shielding can be specified in any cap style and are held securely by a removable stainless steel clip ring.
LISTING: cCSAus, Wet location. Laboratory tests conducted by CSA to UL Standards UL-1598, UL-8750 and UL-1838. IP66 Rated
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty.
