Home > Lithonia Lighting > Hydrel PLACER A P1 80CRI 27K 120 25DEG FLC WMC S9036 C2 DBL Sign light with 90 degree 36" Stem, Black Finish

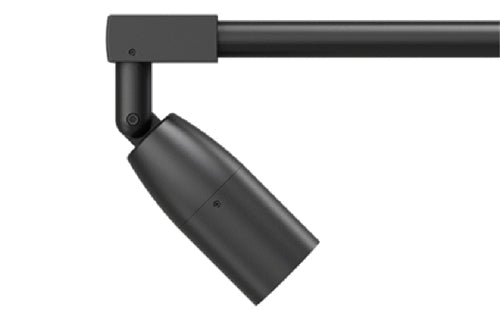

Hydrel PLACER A P1 80CRI 27K 120 25DEG FLC WMC S9036 C2 DBL Sign light with 90 degree 36" Stem, Black Finish
Hydrel PLACER A P1 80CRI 27K 120 25DEG FLC WMC S9036 C2 DBL Sign light with 90 degree 36" Stem, Black Finish
Regular price
Price:
$830.50
Regular price
Price:
Sale price
$830.50
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
MATERIAL: Body, caps and knuckle machined from 6061-T6 aluminum.
MATERIAL: Body, caps and knuckle machined from 6061-T6 aluminum.
LIGHT SOURCE: Proprietary high output LED’s. Units have near constant light output when supplied with 11VAC-14VAC to combat voltage drop. All within 3 MacAdam ellipses.
VOLTAGE: 12 Volt AC, 120 volt AC.
DISTRIBUTION: Available 15DEG, 20DEG, 25DEG, 30DEG, 35DEG, 40DEG, 45DEG, 50DEG, 55DEG
LENS: FLC - Cut from heat strengthened borosilicate glass for superior clarity and strength. WSL - Molded heat strengthened borosilicate glass for superior clarity and strength
MOUNTING: See mounting accessories.
POWER SUPPLY: Remote 12VAC transformer, purchased separately. For 120VAC driver is integral. 12VAC dimmable using a remote magnetic transformer. 120V AC dimmable using a standard Triac dimming switch/systems.
FINISH: Super durable polyester TGIC powder coat finish (standard). Optional zinc undercoat for harsh environments.
FEATURES: Tapered “Sure Lock” knuckle seat for infinite aiming and an unparalleled locking ability. Any combination of up to 2 lens accessories/color filter/shielding can be specified in any cap style and are held securely by a removable stainless steel clip ring.
LISTING: cCSAus, Wet location. Laboratory tests conducted by CSA to UL Standards UL-1598, UL-8750 and UL-1838.
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty
VOLTAGE: 12 Volt AC, 120 volt AC.
DISTRIBUTION: Available 15DEG, 20DEG, 25DEG, 30DEG, 35DEG, 40DEG, 45DEG, 50DEG, 55DEG
LENS: FLC - Cut from heat strengthened borosilicate glass for superior clarity and strength. WSL - Molded heat strengthened borosilicate glass for superior clarity and strength
MOUNTING: See mounting accessories.
POWER SUPPLY: Remote 12VAC transformer, purchased separately. For 120VAC driver is integral. 12VAC dimmable using a remote magnetic transformer. 120V AC dimmable using a standard Triac dimming switch/systems.
FINISH: Super durable polyester TGIC powder coat finish (standard). Optional zinc undercoat for harsh environments.
FEATURES: Tapered “Sure Lock” knuckle seat for infinite aiming and an unparalleled locking ability. Any combination of up to 2 lens accessories/color filter/shielding can be specified in any cap style and are held securely by a removable stainless steel clip ring.
LISTING: cCSAus, Wet location. Laboratory tests conducted by CSA to UL Standards UL-1598, UL-8750 and UL-1838.
GOVERNMENT PROCUREMENT
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/resources/buy-american for additional information.
WARRANTY: 5-year limited warranty
