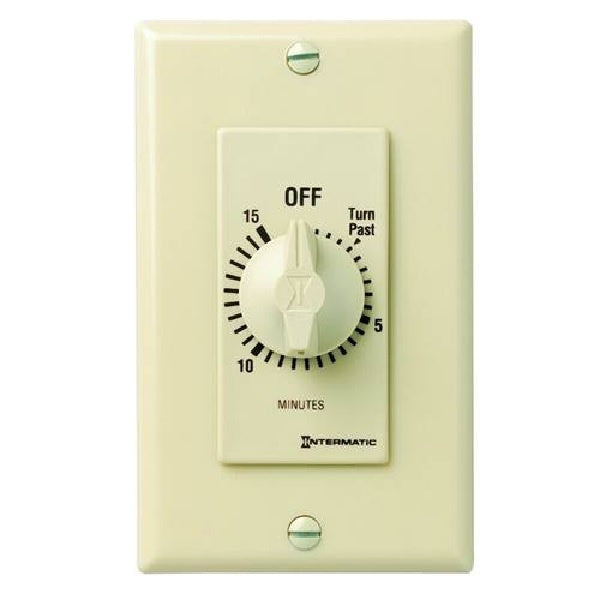

Intermatic FD15MC Spring Wound Countdown Timer, 15 Minutes Countdown Time, Ivory
Intermatic FD15MC Spring Wound Countdown Timer, 15 Minutes Countdown Time, Ivory
Regular price
Price:
$30.81
Regular price
Price:
Sale price
$30.81
Unit price
per
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
PRODUCT APPLICATIONS
PRODUCT SPECIFICATIONS
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads.
PRODUCT FEATURES
PRODUCT FEATURES
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Models available from 5 minute to 12 hour countdown time intervals
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
PRODUCT APPLICATIONS
- Bathroom Fans
- Garage Lights
- Storage Closets
- Whirlpools
PRODUCT SPECIFICATIONS
Application Compatibilities
CFL, Fluorescent, Incandescent, LED
Color
Ivory
Countdown Time
15 min
CSA Certification
cCSAus
Hold Mode Included
No
Input Voltage Ranges
125-277 VAC, 50/60 Hz
Mechanism Type
Analog/Mechanical
Model Number
FD15MC
Neutral Connection Required
No
Operating Temperature Min (F)
40
Operating Temperature Max (F)
120
Operating Temperature Min (°C)
4
Operating Temperature Max (°C)
49
Operation Mode
Countdown
Other Certifications and Compatibilities
RU
Product Height (in)
4.125
Product Height (mm)
104.8
Product Width (in)
1.75
Product Width (mm)
44.5
Product Depth (in)
1.25
Product Depth (mm)
31.8
Resistive (Heater)
20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Shipping Weight (lbs)
0.299
Shipping Weight (kg)
0.136
Switch Type
SPST
Tungsten (Incandescent) Range(s)
7 A, 125 VAC, 50/60 Hz, 875 W
Unit Carton Height (in)
7
Unit Carton Length (in)
2.5
Unit Carton Width (in)
4
UPC Code
078275005013
Wall Plate Configurations
Multi-Gang, Single-Gang
Warranty
1-Year limited
CFL, Fluorescent, Incandescent, LED
Color
Ivory
Countdown Time
15 min
CSA Certification
cCSAus
Hold Mode Included
No
Input Voltage Ranges
125-277 VAC, 50/60 Hz
Mechanism Type
Analog/Mechanical
Model Number
FD15MC
Neutral Connection Required
No
Operating Temperature Min (F)
40
Operating Temperature Max (F)
120
Operating Temperature Min (°C)
4
Operating Temperature Max (°C)
49
Operation Mode
Countdown
Other Certifications and Compatibilities
RU
Product Height (in)
4.125
Product Height (mm)
104.8
Product Width (in)
1.75
Product Width (mm)
44.5
Product Depth (in)
1.25
Product Depth (mm)
31.8
Resistive (Heater)
20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Shipping Weight (lbs)
0.299
Shipping Weight (kg)
0.136
Switch Type
SPST
Tungsten (Incandescent) Range(s)
7 A, 125 VAC, 50/60 Hz, 875 W
Unit Carton Height (in)
7
Unit Carton Length (in)
2.5
Unit Carton Width (in)
4
UPC Code
078275005013
Wall Plate Configurations
Multi-Gang, Single-Gang
Warranty
1-Year limited
downloads
Download PDF Instruction ManualShare your knowledge of this product. Be the first to write a review »
