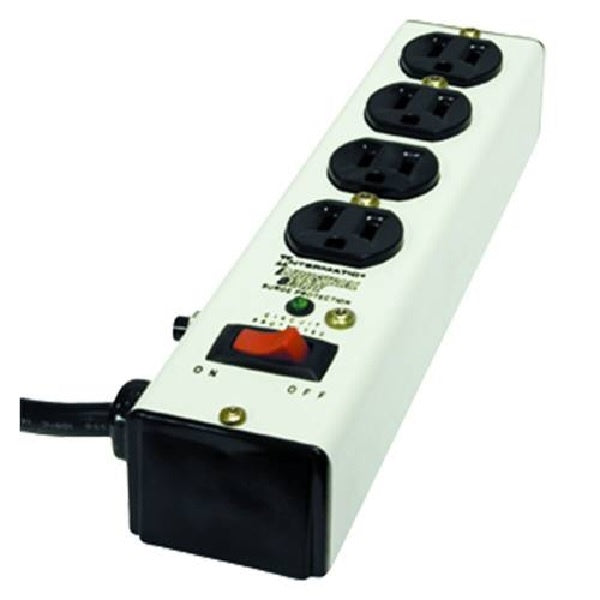

Intermatic IG112463 Point-of-Use Surge Strips, 4 Outlets, 125 VAC, Single Phase, MOV, White
Intermatic IG112463 Point-of-Use Surge Strips, 4 Outlets, 125 VAC, Single Phase, MOV, White
Regular price
Price:
$59.45
Regular price
Price:
Sale price
$59.45
Unit price
per
Ordering a large quantity?Request a quote
description
PRODUCT DESCRIPTION
Type 3 Point-of-Use Surge Protective Devices (SPD) are designed for heavy industrial use with 3 modes of surge protection (L-N, L-G, N-G). Features a 15 A resettable breaker and #14 AWG SJT power cord with molded plug. CSA certified to ANSI/UL 1449, 3rd Edition.
PRODUCT FEATURES
PRODUCT FEATURES
- Three Modes of protection
- Metal Oxide Varistor (MOV) surge protection technology
- 15 A resettable breaker
- #14 AWG SJT power cord with molded plug
- Six foot cord length with four outlets
- LED protection indicator
- Extruded aluminum housing
- White
- Illuminating ON/OFF Switch
- 5-year product warranty
- $10,000 connected equipment warranty on appliances and electronics
- CSA certified to ANSI/UL 1449 3rd edition
PRODUCT APPLICATIONS
- Commercial
- Industrial
PRODUCT SPECIFICATIONS
Surge Protection Type
3
Has Illuminated ON/OFF Switch
Yes
Number of Outlets
4
Product Height (in)
1 7/8
Product Height (mm)
47.6
Product Width (in)
1 7/8
Product Width (mm)
47.6
Product Depth (in)
9 9/16
Product Depth (mm)
242.9
Cord Length (ft)
6
Cord Length (m)
1.828
Color
White
Maximum Continuous Operating Voltage (L-G)
130
Maximum Continuous Operating Voltage (L-N)
130
Maximum Continuous Operating Voltage (N-G)
130
Voltage Protection Rating (L-N)
700
Voltage Protection Rating (L-G)
600
Voltage Protection Rating (N-G)
600
Circuit Breaker Amperage
15 A
Input Voltages
125 VAC, 60 Hz
Operating Temperature Min (F)
-4
Operating Temperature Max (F)
104
Operating Temperature Min (°C)
-20
Operating Temperature Max (°C)
40
Connect Equipment Warranty Period
5-Year
Warranty
5-Year limited
3
Has Illuminated ON/OFF Switch
Yes
Number of Outlets
4
Product Height (in)
1 7/8
Product Height (mm)
47.6
Product Width (in)
1 7/8
Product Width (mm)
47.6
Product Depth (in)
9 9/16
Product Depth (mm)
242.9
Cord Length (ft)
6
Cord Length (m)
1.828
Color
White
Maximum Continuous Operating Voltage (L-G)
130
Maximum Continuous Operating Voltage (L-N)
130
Maximum Continuous Operating Voltage (N-G)
130
Voltage Protection Rating (L-N)
700
Voltage Protection Rating (L-G)
600
Voltage Protection Rating (N-G)
600
Circuit Breaker Amperage
15 A
Input Voltages
125 VAC, 60 Hz
Operating Temperature Min (F)
-4
Operating Temperature Max (F)
104
Operating Temperature Min (°C)
-20
Operating Temperature Max (°C)
40
Connect Equipment Warranty Period
5-Year
Warranty
5-Year limited
