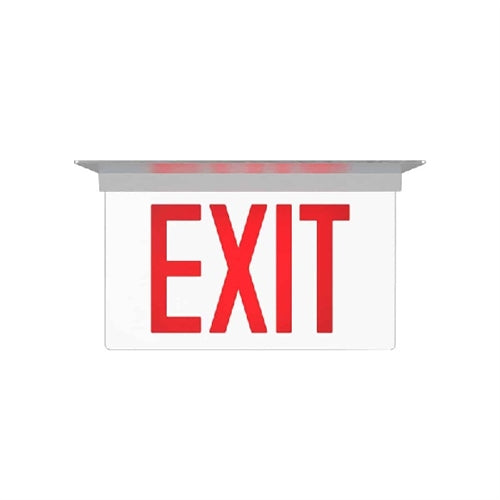

Isolite ELT2-AC-R-1C-AG-BA-MRC-AN Elite Edge-Lit Exit Sign, AC Only, Red Letter, Single Face, Clear Background, Angular Trim Frame, Brushed Aluminum Frame, Recessed Ceiling Mount, No Arrows
Isolite ELT2-AC-R-1C-AG-BA-MRC-AN Elite Edge-Lit Exit Sign, AC Only, Red Letter, Single Face, Clear Background, Angular Trim Frame, Brushed Aluminum Frame, Recessed Ceiling Mount, No Arrows
Regular price
Price:
$343.20
Regular price
Price:
Sale price
$343.20
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- "Snap-in Lens' for easy installation.
-
Recessed back box can be pre-installed at job sit
-
Precision die-cast aluminum housing with a flawless, laser-formed acrylic legen
-
Hinged springs allow for concealed mounting hardware on recessed model
-
Recessed back box meets New York specification
- AC models: Red 1.5W; Green 2.3W
- EM models: Red 2.5W; Green 3.0W
- 6.0" high; 0.75" stroke
- Full Size Chevrons: Either factory installed, or self-adhesive chevron kit and template for on-site installation
- Surface Wall/Ceiling/End/Mullion Mount: 9 lbs
- Recessed Ceiling: 8 lbs
- Back Box: 4 lbs
- From 32°F to 102°F
- UL 924
- CEC Title 20
- NFPA 101
- NFPA 70
- OSHA
- Backbox is IC rated and meets NYC and City of Chicago Specifications
- FCC Title 47 Part 15, Subpart B
- BAA Compliant
- Isolite offers a 5-year limited warranty.
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
