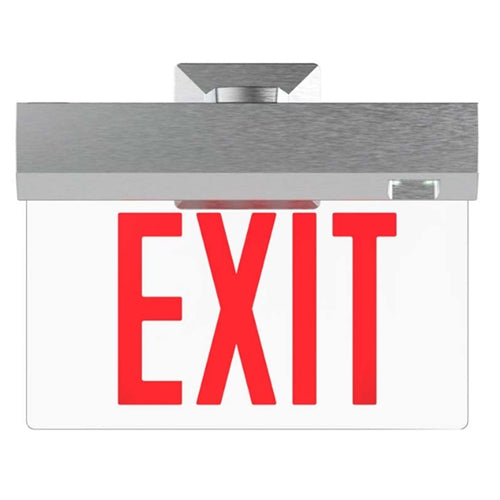

Isolite ELTMR2-AC-R-1M-AG-BK-MB-AL Elite Edge-Lit Exit Sign, Remote Exit Sign Capable, AC Only, Red Letter, Single Face, Mirror Background, Angular Trim Frame, Black Frame, Back Mount, Arrow Left
Isolite ELTMR2-AC-R-1M-AG-BK-MB-AL Elite Edge-Lit Exit Sign, Remote Exit Sign Capable, AC Only, Red Letter, Single Face, Mirror Background, Angular Trim Frame, Black Frame, Back Mount, Arrow Left
Regular price
Price:
$399.30
Regular price
Price:
Sale price
$399.30
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
-
"Snap-in Lens" for easy installation
-
Recessed back box can be pre-installed at job site
-
Precision die-cast aluminum housing with a flawless, laser-formed acrylic legend
-
Hinged springs allow for concealed mounting hardware on recessed models
- Recessed back box meets New York specifications.
- AC models: Red 1.5W; Green 2.3
-
EM models: Red 2.5W; Green 3.0
-
6.0" high; 0.75" strok
-
Full Size Chevrons: Either factory installed, or self-adhesive chevron kit and template for on-site installation
-
Back Wall/Ceiling/End/Mullion Mount: 9 lb
-
Recessed Ceiling: 8 lb
- Back Box: 4 lbs
- From 32 degrees F to 102 degrees
-
UL 92
-
CEC Title 20 Complian
-
NFPA 10
-
NFPA 7
-
OSH
-
Backbox is IC rated and meets NYC and City of Chicago Specifications
-
FCC Title 47 Part 15, Subpart
- Isolite offers a 5-year limited warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
